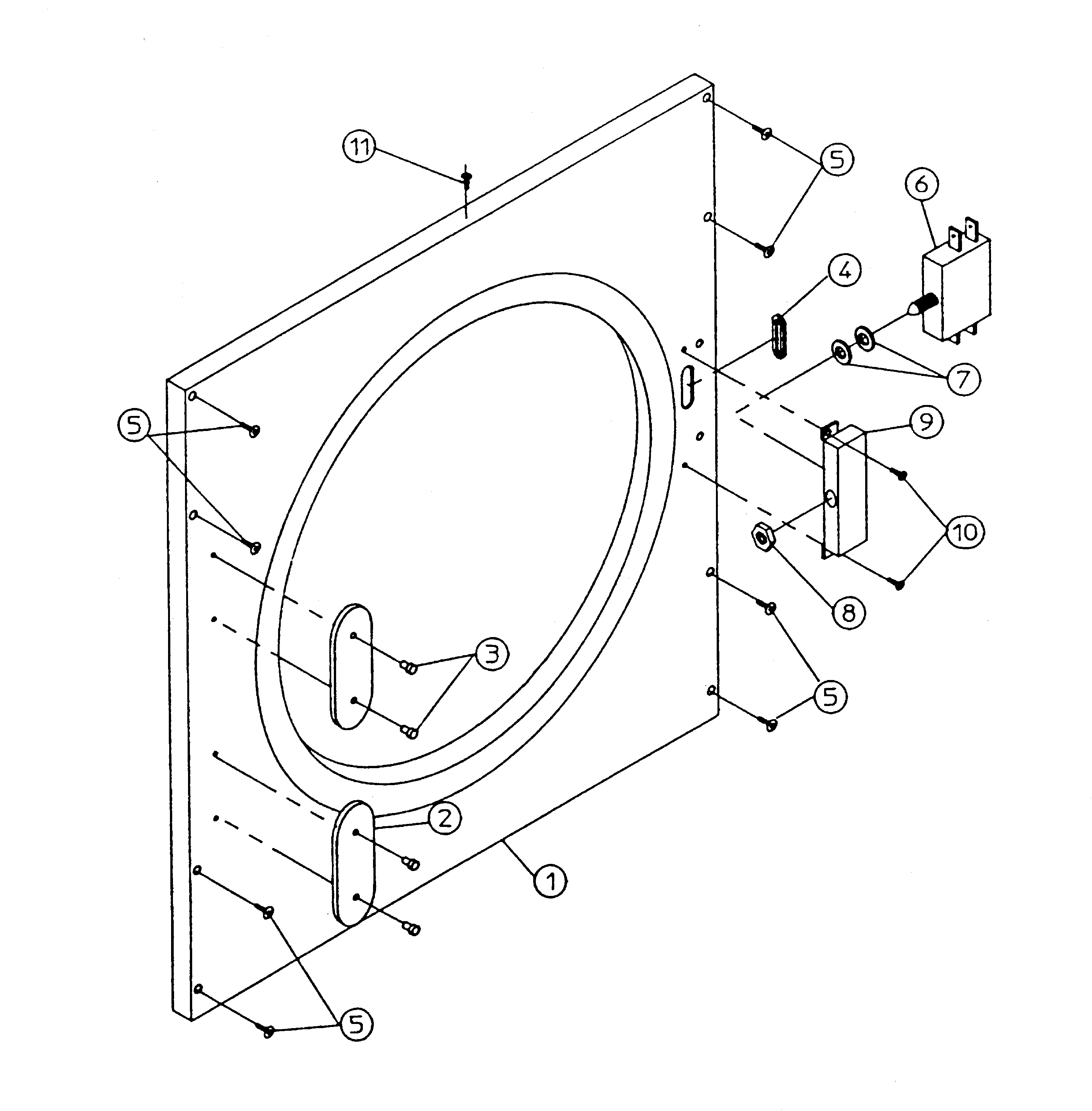

DG75PN1 06 – FRONT PANEL ASSY. (MAGNET TYPE-DG50/75)

DG75PN1 06 – FRONT PANEL ASSY. (MAGNET TYPE-DG50/75)

Written by

in

DG75PN1 06 – FRONT PANEL ASSY. (MAGNET TYPE-DG50/75)

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A800373
001MAY A800371
001MAY A800368
002MAY A313903
003MAY A154200
004GROMMET, RUBBER
005MAY A150415
006MAY A137003
007MAY A401551
008MAY A152003
009MAY A870010
009MAY A313209
010MAY A150300
