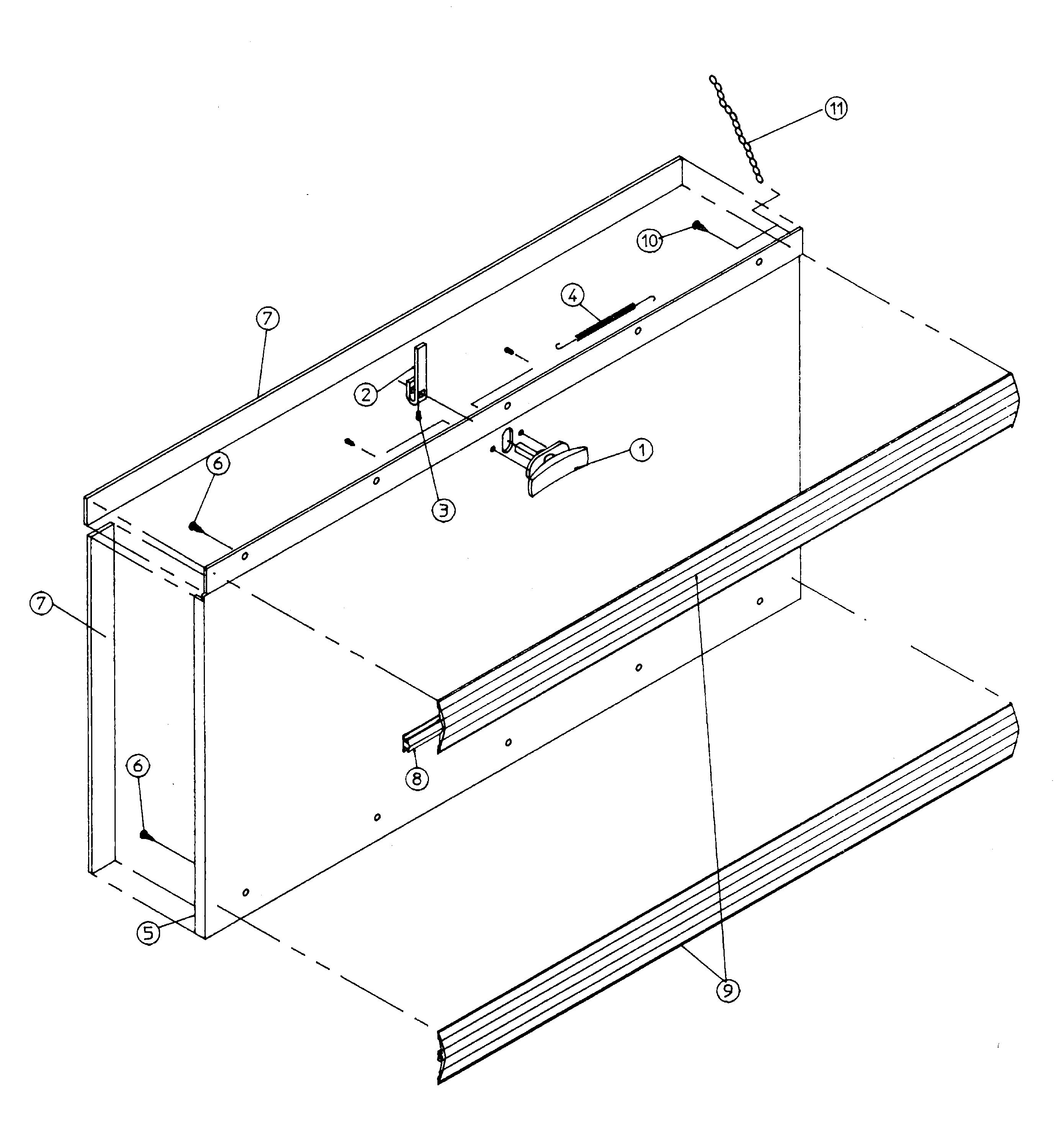

DG75PN1 09 – LINT DOOR ASSEMBLY (DG75)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	KNOB LATCH KIT ASSY.
001	MAY A160200
002	MAY A160009
002	MAY A160008
003	MAY A150425
004	MAY A157000
005	LINT DOOR ASSY.(SPECIFY COLOR) (INCL. ITEMS No.4 THRU 8)
006	MAY A150201
007	MAY A117600
008	MAY A102307
009	MID TRIM/KICK PLATE (38-1/4“ LENGTH)
010	MAY A150415
011	MAY A108120
