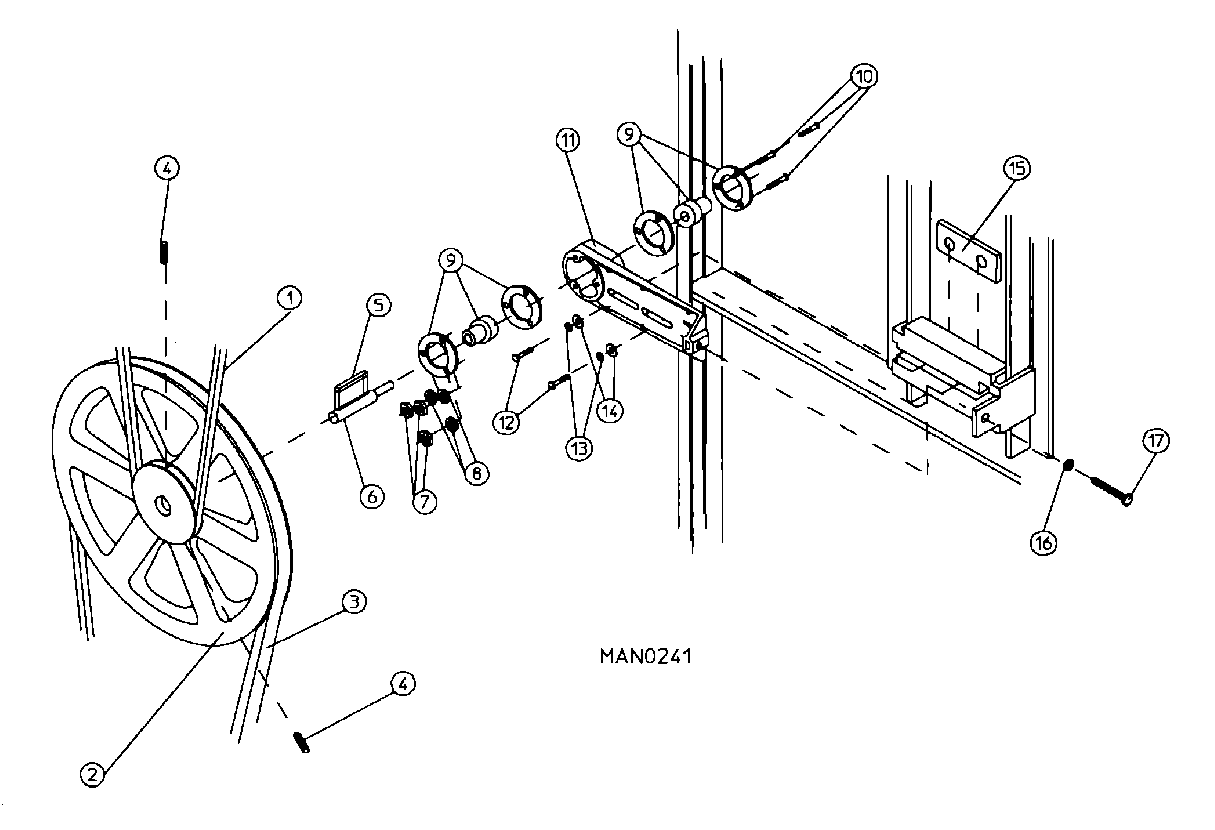

DG75PN1 12 – IDLER BEARING ASSEMBLY (DG75PN1)
Written by
in
DG75PN1 12 – IDLER BEARING ASSEMBLY (DG75PN1)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | V-BELT (5L-690) |
| 002 | MAY A101140 |
| 003 | V-BELT (4L-620) |
| 004 | MAY A154301 |
| 005 | MAY A100705 |
| 006 | MAY A301850 |
| 007 | MAY A152002 |
| 008 | MAY A153007 |
| 009 | MAY A100214 |
| 010 | MAY A150521 |
| 011 | DOWEL PIN FOR HANDLE |
| 012 | MAY A150617 |
| 013 | MAY A153005 |
| 014 | MAY A153004 |
| 015 | MAY A801009 |
| 016 | MAY A152004 |
| 017 | MAY A150509 |
