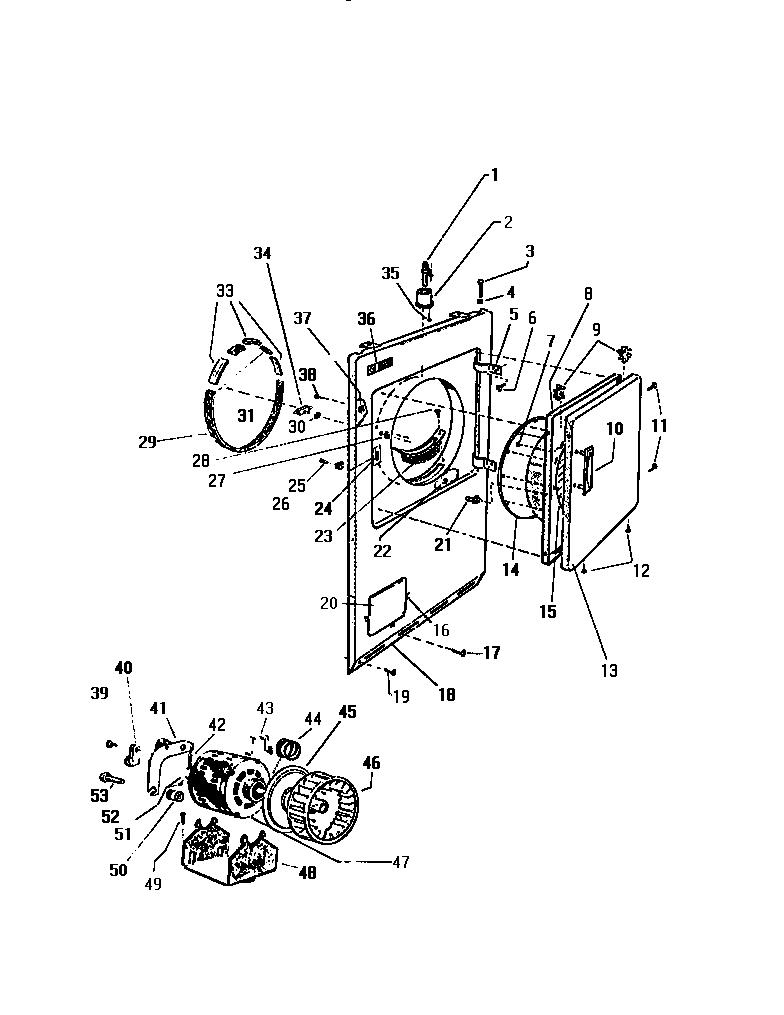

DG800EXD1 03 – FRONT PANEL, DOOR, MOTOR

Products

Position	Product
1	WCI Q128481
2	WCI Q182671
3	WCI Q55021
4	WCI Q500155
5	WCI Q94651
6	WCI Q500433
7	WCI Q503952
8	PANEL INNER DOOR, ALMD
9	WCI Q40120
10	WCI Q151326
12	WCI Q411004
13	PANEL OUTER DOOR, ALMD
14	WCI Q167703
15	SHIELD
16	SUPPORT
18	PANEL FRONT, 1-2 MODELS, ALMOND
19	WCI Q501687
20	WCI Q182711
21	WCI Q504552
23	WCI Q168541
24	WCI Q504551
25	WCI Q502482
26	WCI 1466314
27	WCI Q501450
28	WCI Q405802
29	WCI Q142888
30	WCI Q409004
33	GUIDE KIT
34	SWITCH DOOR – 1-2 MODELS
35	SCREW (4)
36	WCI Q604442
37	WCI Q500255
38	WCI Q505564
39	WCI Q414002
40	CLAMP
41	IDLER PULLEY AND BRACKET
42	SPRING
43	WCI Q62206
44	WCI Q94715
45	WCI Q94948
46	WCI Q615901
47	START SWITCH FOR Q616391 EMER.
47	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
47	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
47	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
47	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
47	START SWITCH FOR Q616401 GE
47	START SWITCH FOR Q615921 WW
48	WCI Q94874
49	SCREW
50	WCI Q600179
51	SCREW
52	PULLEY (SEE NOTE 1)
53	WCI Q433401
