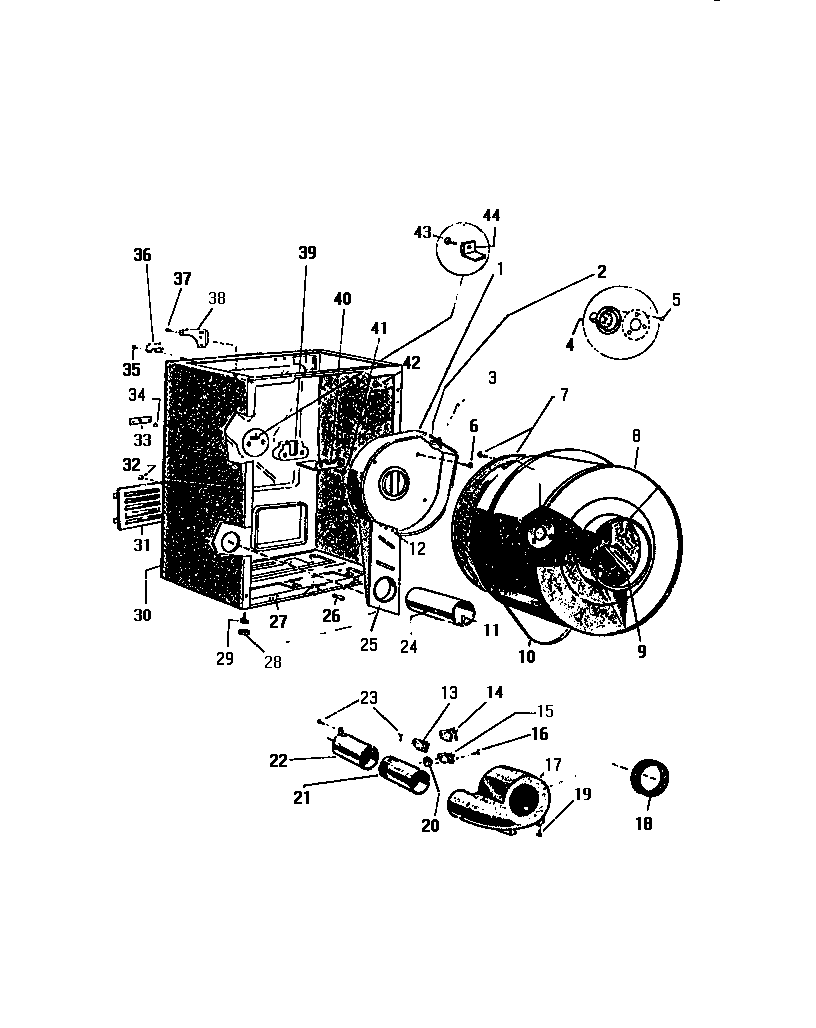

DG800EXD1 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*59201	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	HEATER HOUSING
2	THERMOSTAT HI-LIMIT
4	SHAFT
5	SCREW
7	WCI Q165773
7	SCREW (3)
8	SPINNER, BASKET
9	WCI Q615893
9	WCI Q501592
9	WCI Q615894
10	WCI Q63807
13	THERMOSTAT, LOW HEAT
14	THERMOSTAT, MEDIUM HEAT
15	THERMOSTAT, REGULAR HEAT
16	SCREW
17	WCI Q171281
18	WCI Q19462
19	SCREW (4)
20	WCI Q606131
21	THERMOSTAT DUCT
22	WCI Q182901
24	TUBE, BURNER
25	WCI Q116393
26	WCI Q501281
27	WCI Q502956
28	WCI Q16971
29	WCI Q198170
30	BODY, ALMD
31	WCI Q94811
32	SCREW (4)
33	SPEED NUT STRIP
34	BALL
36	WCI Q155561
37	WCI Q409702
38	WCI Q133282
39	BEARING
40	BRACKET
41	SCREW
43	WCI Q505564
44	BRACKET
