DG800EXF2 02 – CONSOLE, CONTROLS, TOP PANEL – Aparts

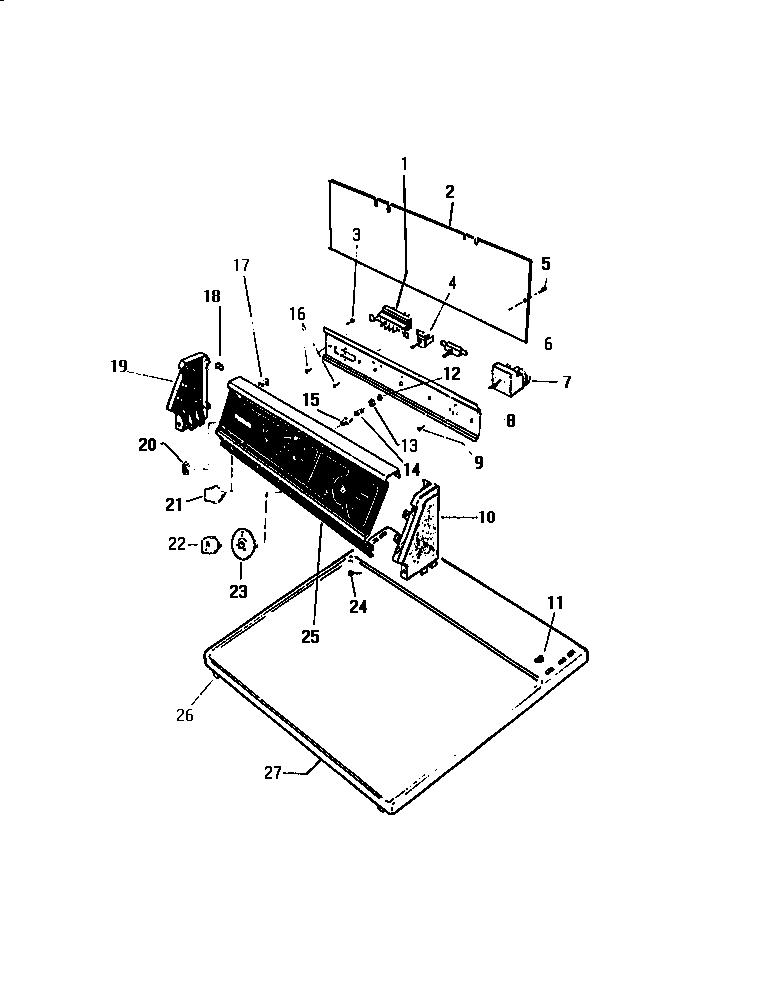

DG800EXF2 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	WCI Q614730
2	WCI Q616741
3	SCREW (4)
4	WCI Q152914
5	SCREW (4)
6	START SWITCH
7	WCI Q618542
8	WCI Q616712
10	WCI Q616732
11	WCI Q503065
12	WCI Q409004
13	WCI Q501450
14	WCI Q66793
15	WCI Q621231
16	SCREW (4)
17	WCI Q504801
18	SPEEDNUT (8)
19	WCI Q616731
20	WCI Q148992
22	KNOB TIMER
23	WCI Q617641
24	WCI Q504533
25	PANEL, CONTROL - 1-2 MODELS
26	SPRING CATCH
27	WCI Q621247
