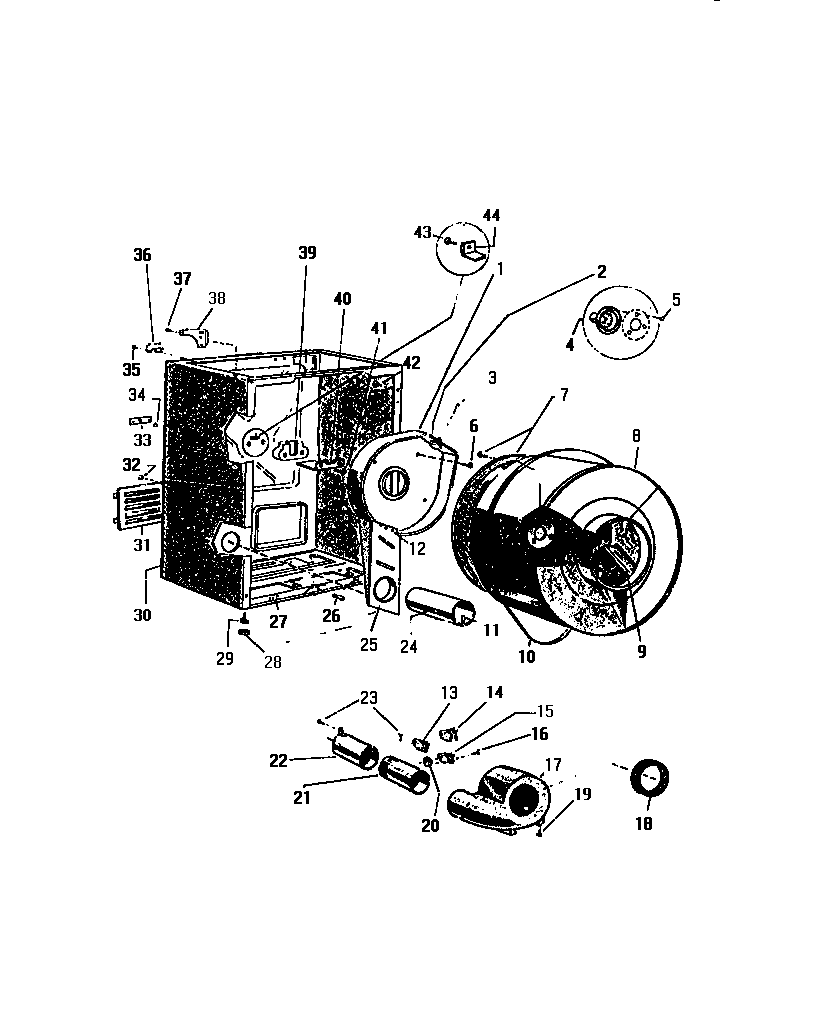

DG800EXV5 04 – CABINET, DRUM, HEATER HOUSINGadmin2025-04-26T08:50:40+00:00DG800EXV5 04 – CABINET, DRUM, HEATER HOUSING
Products
| Position | Product |
|---|
| *59201 | REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21) |
| 1 | HEATER HOUSING |
| 2 | THERMOSTAT, HI LIMIT |
| 4 | SHAFT |
| 5 | SCREW |
| 7 | WCI Q165773 |
| 7 | SCREW (3) |
| 8 | SPINNER, BASKET |
| 9 | WCI Q501592 |
| 9 | WCI Q615894 |
| 9 | WCI Q615893 |
| 10 | WCI Q63807 |
| 13 | THERMOSTAT, LOW HEAT |
| 14 | THERMOSTAT, MEDIUM HEAT |
| 15 | THERMOSTAT, REGULAR HEAT |
| 16 | SCREW |
| 17 | WCI Q171281 |
| 18 | WCI Q19462 |
| 19 | SCREW (4) |
| 20 | WCI Q606131 |
| 21 | THERMOSTAT DUCT |
| 22 | WCI Q182901 |
| 24 | TUBE, BURNER |
| 25 | WCI Q116393 |
| 26 | WCI Q501281 |
| 27 | WCI Q502956 |
| 28 | WCI Q16971 |
| 29 | WCI Q198170 |
| 30 | BODY, FR AV |
| 31 | WCI Q94811 |
| 32 | SCREW (4) |
| 33 | SPEED NUT STRIP |
| 34 | BALL |
| 36 | WCI Q155561 |
| 37 | WCI Q409702 |
| 38 | WCI Q133282 |
| 39 | BEARING |
| 40 | BRACKET |
| 41 | SCREW |
| 43 | WCI Q505564 |
| 44 | BRACKET |
