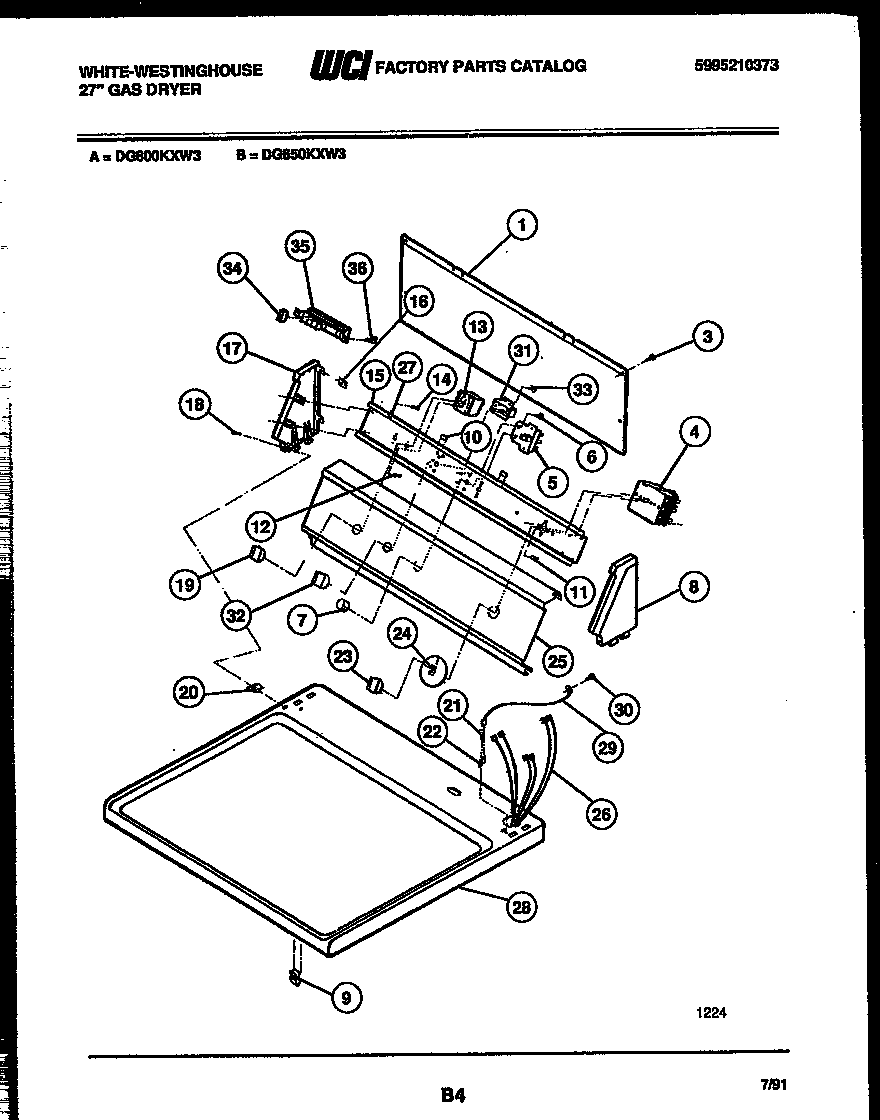

DG800KXW3 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	SCREW
4	WCI 3201218
5	SWITCH - START
6	WCI 08001544
7	WCI 3201221
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	SCREW (2)
12	WCI 3281101
14	5303015671 Frigidaire Bracket Termination Screw
15	BRACKET-MTG
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	KNOB-TIMER
24	WCI 08015434
25	WCI 3206028
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 5303270854
27	WCI 3281200
28	PANEL-TOP-WHITE
29	WIRE-GROUND
30	SCREW (2)
31	WCI 5300152914
32	WCI 5300633722
34	WCI Q000148996
35	SWITCH-P.B.
36	SCREW (2)
