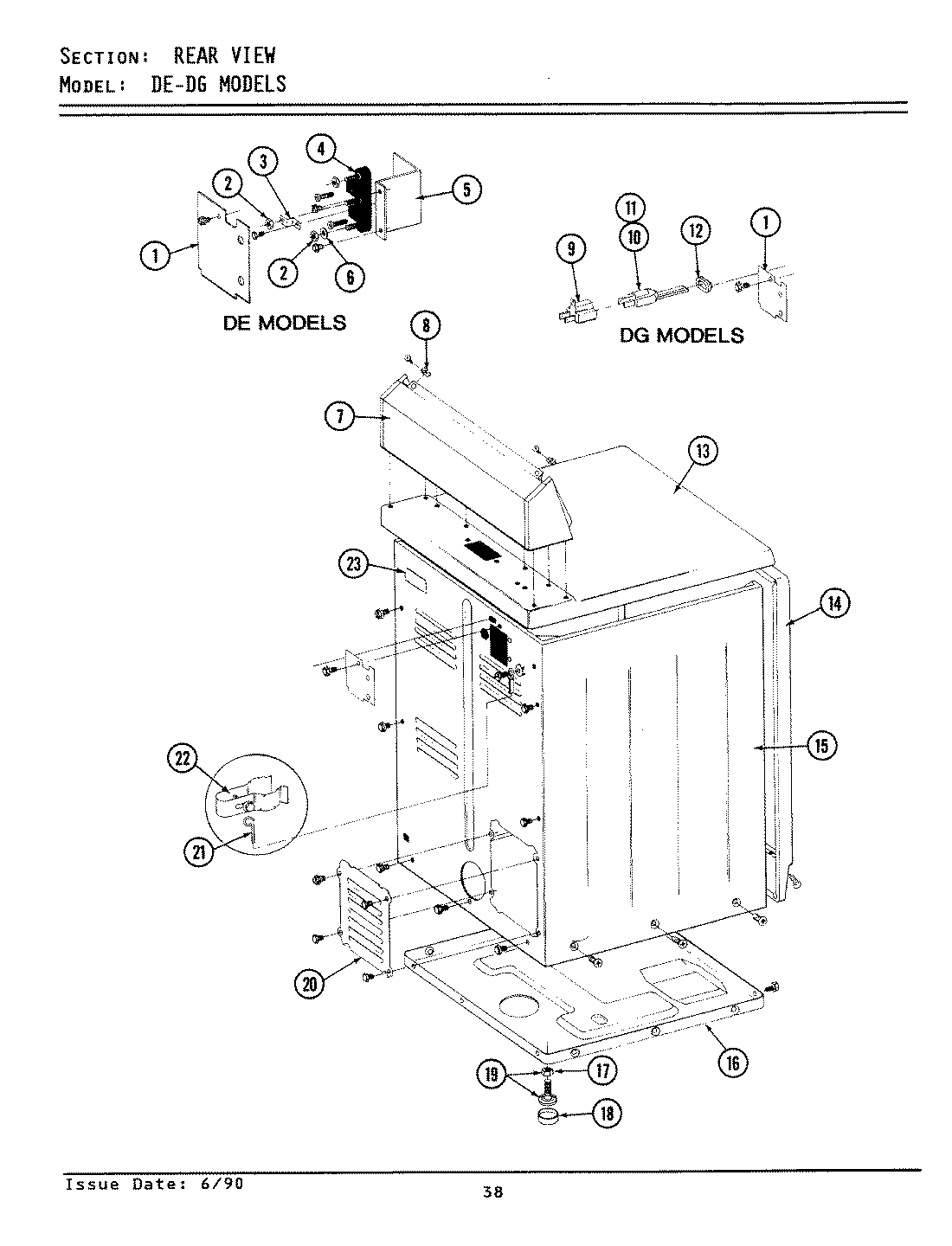

DG8420 08 – REAR VIEW

DG8420 08 – REAR VIEW

Written by

in

DG8420 08 – REAR VIEW

Products

PositionProduct
1MAY Y312905
7MAY Y305193
8MAY 215075
9MAY Y201808
10MAY 302521
12GROMMET
13TOP COVER ASSY. (WHT)
14MAY Y307998
15MAY 307124
15MAY Y313561
15MAY Y310632
16MAY Y303361
17WP62739 Whirlpool Nut
18WPY314137 Whirlpool Rubber Foot
19W10176519 Whirlpool Leveling Feet
20MAY Y313559
20MAY Y312951
20WP90767 Whirlpool Screw
21WP311155 Whirlpool Wire Assembly
22MAY 301548
22MAY 313122
23INSTRUCTION LABEL
