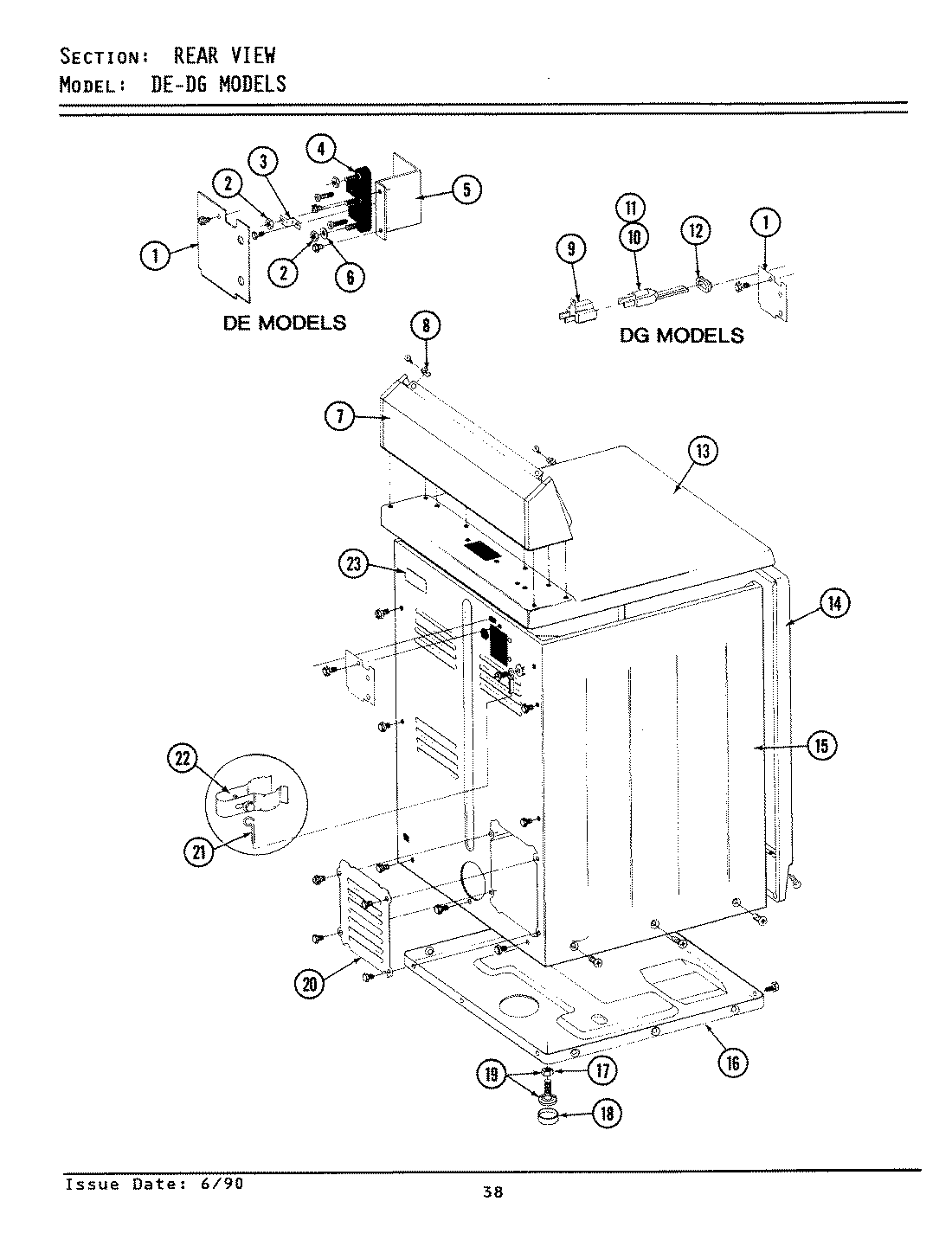

DG8600 08 – REAR VIEW

DG8600 08 – REAR VIEW

Written by

in

DG8600 08 – REAR VIEW

Products

Position	Product
1	MAY Y312905
8	MAY 215075
9	MAY Y201808
10	MAY 302521
12	GROMMET
13	TOP COVER ASSY. (WHT)
14	MAY Y307998
15	MAY 307124
15	MAY Y310632
15	MAY Y313561
16	MAY Y303361
17	WP62739 Whirlpool Nut
18	WPY314137 Whirlpool Rubber Foot
19	W10176519 Whirlpool Leveling Feet
20	WP90767 Whirlpool Screw
20	MAY Y313559
20	MAY Y312951
21	WP311155 Whirlpool Wire Assembly
22	MAY 313122
22	MAY 301548
23	INSTRUCTION LABEL
