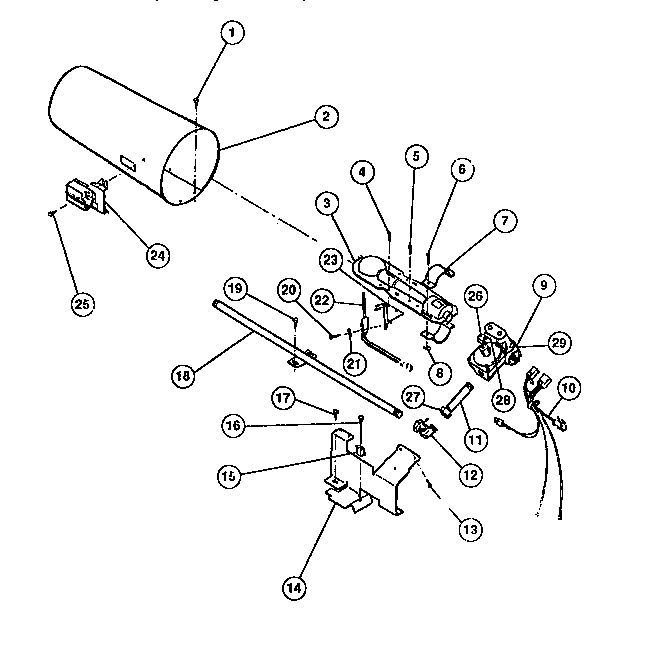

DG8800PW0 06 – GAS VALVE, BURNER ASSEMBLY, SENSOR

DG8800PW0 06 – GAS VALVE, BURNER ASSEMBLY, SENSOR

Written by

in

DG8800PW0 06 – GAS VALVE, BURNER ASSEMBLY, SENSOR

Products

PositionProduct
2TUBE ASSY BURNER
3134264900 Frigidaire Burner
6SCREW
7WCI 5303281138
8WCI 5303281148
9WCI 5303281147
10HARNESS
11CONNECTION-UNION MALE
12WCI 5303281146
13131243800 Frigidaire Screw
14WCI 5303281145
15CLIP
17SCREW
18WCI 08015271
19WCI 5303010202
20WCI 5303281150
215300809968 Frigidaire Dishwasher P-1 Washer
22WCI 5303261151
23WCI 5303281149
245303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25SCREW
26WCI 5300171852
26ORIFICE – NATURAL GAS
26WCI 5303281140
27NUT-HEX UNION
285303931775 Frigidaire Dryer Coil Kit
