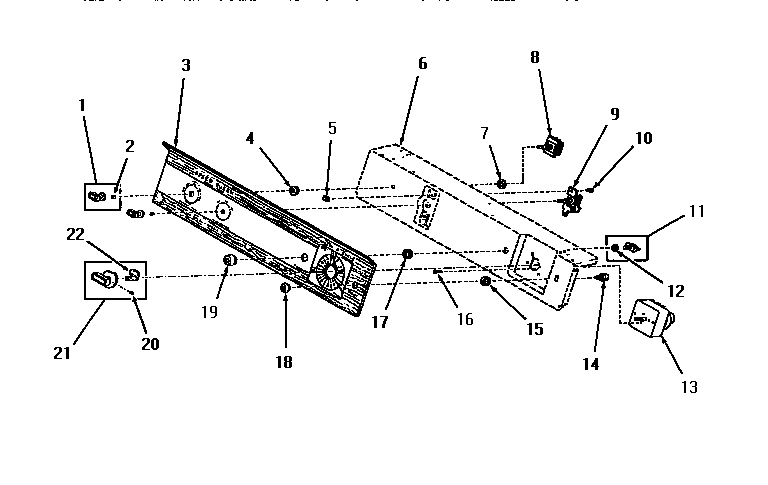

DG9031 09 – CONTROL PANEL AND CONTROLS

Products

Position	Product
1	MAY 24291
2	MAY 23392
3	MAY 53524
4	MAY 24391
5	MAY 23407
6	SEE NOTE GROUND WIRE, GREEN
7	MAY 91176
8	MAY 52623
9	MAY 53516
10	WP90767 Whirlpool Screw
11	MAY 53563
12	MAY 52947
13	MAY 53466
14	MAY 23401
15	MAY 23400
16	MAY 70212
17	MAY 23406
18	MAY 23399
19	MAY 23130
20	MAY 20310
21	MAY 24290
22	MAY 24283
