DG906 01 – BURNER ASSEMBLY – Aparts

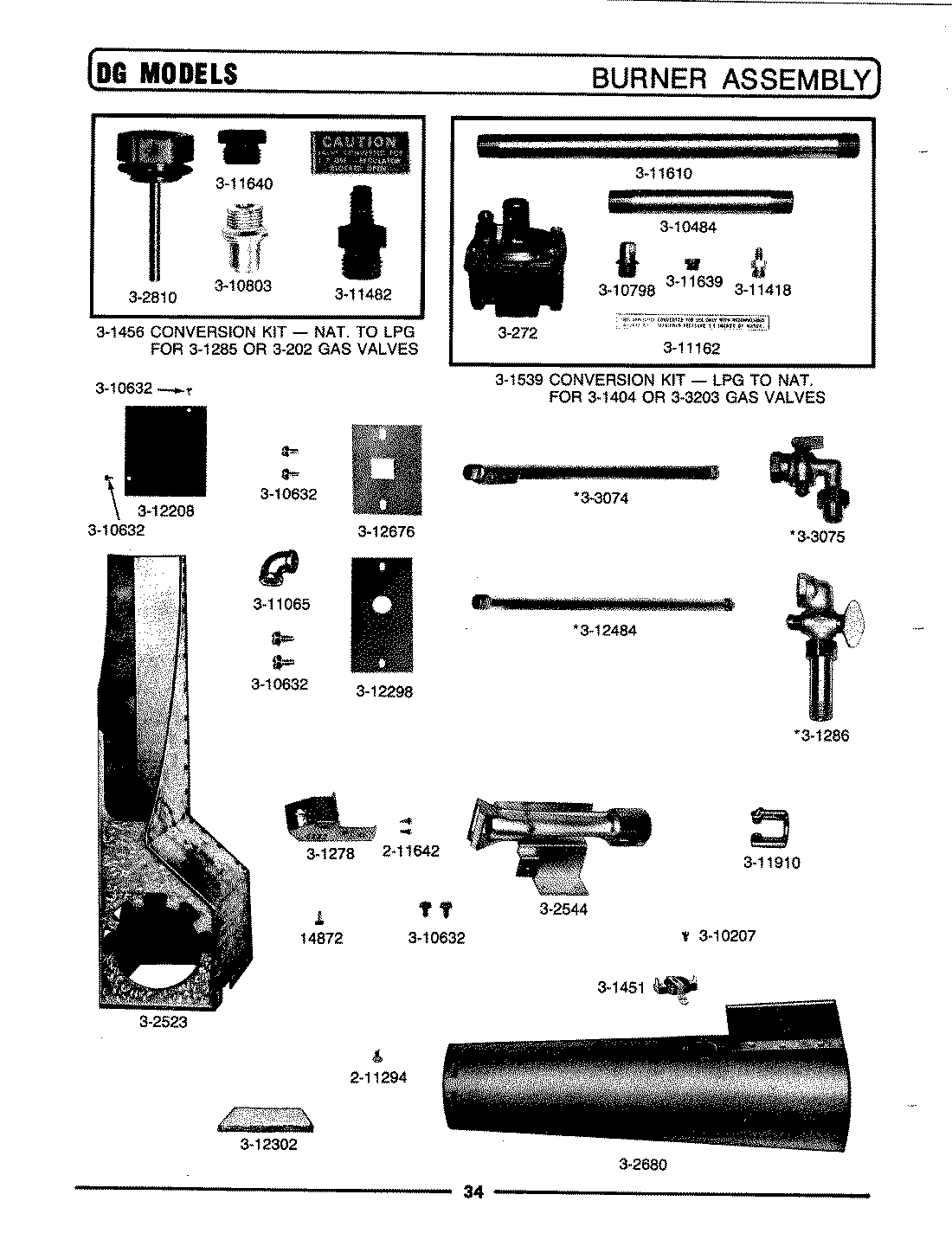

DG906 01 – BURNER ASSEMBLY

Products

Position	Product
1	MAY Y014872
2	WP90767 Whirlpool Screw
3	MAY 211642
4	MAY 300272
5	MAY 301278
6	MAY 301286
7	MAY Y301451
8	MAY 301456
9	MAY 301539
10	MIXING CHAMBER
11	MAY Y302544
12	COMBUSTION CONE
13	MAY 302810
14	MAY 303074
15	SHUT-OFF VALVE
16	MAY 310207
17	MAY 310484
18	MAY Y310632
19	MAY Y310798
20	BURNER ORIFICE BLACK No.57
21	90 DEGREE ELBOW, 3/8 INCH
22	MAY 311162
23	MAY Y311418
24	MAY Y311482
25	MAY 311610
26	MAY Y311639
27	MAY 311640
28	MAY 311910
29	MAY 312208
30	MAY 312298
31	MAY 312302
32	MAY Y312484
33	MAY 312676
