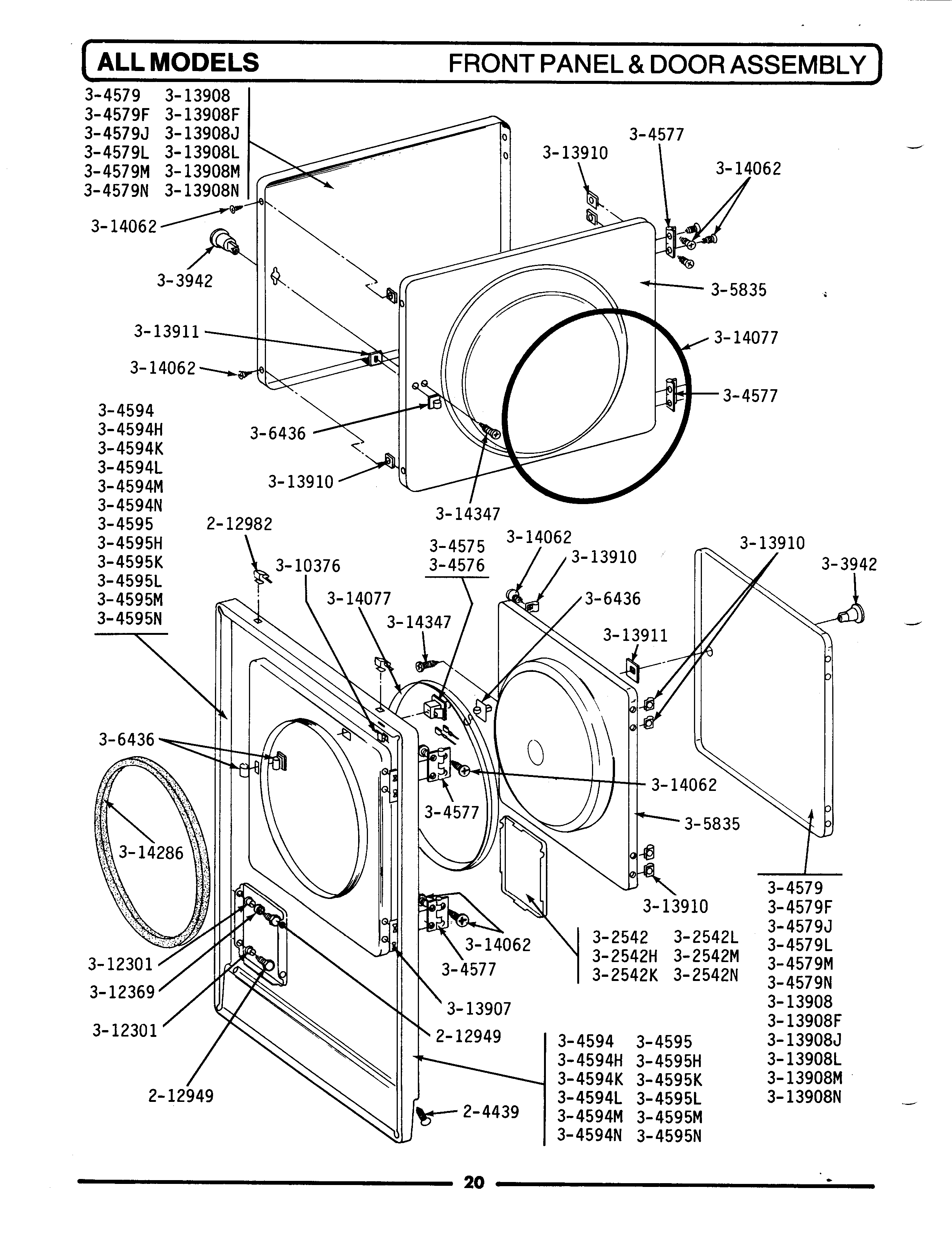

DG91 04 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
011	MAY Y304577
012	MAY Y304579
025	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
026	MAY Y310376
028	SLEEVE, ACCESS DOOR RUBBER
029	LABEL, LINT SCREEN INSTR.
030	MAY Y313907
031	MAY Y313908
037	CLIP, DOOR LINER
038	MAY Y313911
039	MAY Y313927
041	MAY 314077
044	DOWEL PIN FOR HANDLE
