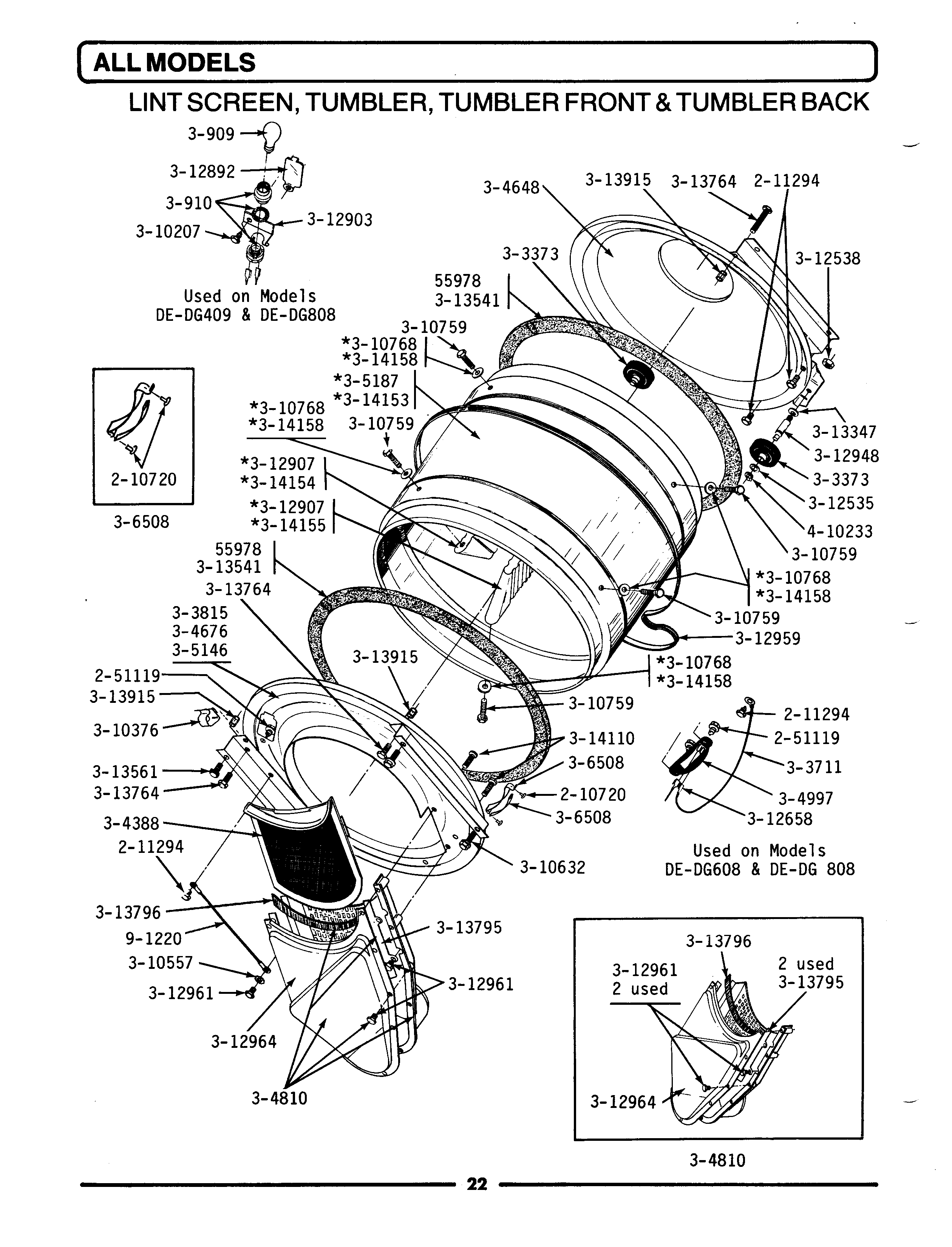

DG91 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

DG91 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

DG91 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
001MAY Y053241
002MAY Y055978
003WP210720 Whirlpool Rivet
004MAY Y303373
005MAY Y303711
006WP6-3042440 Whirlpool Motor Pulley
007MAY Y304388
008MAY Y304648
009MAY Y304810
010MAY Y305185
011MAY 305187
012306508 Whirlpool Dryer Front Glide Kit
013MAY Y310376
014MAY 310557
015MAY Y310632
016MAY Y310759
018WP312535 Whirlpool Washer
019MAY 312538
020MAY Y312907
021WP6-3129480 Whirlpool Roller Shaft
022WPY312959 Whirlpool Dryer Drum Belt
023WPW10116751 Whirlpool Screw
024MAY Y312964
026MAY Y313541
027MAY Y313561
029MAY Y313795
030MAY Y313796
032SCREW, INLET DUCT —-S
033MAY Y314153
034DOWEL PIN FOR HANDLE
036MAY 314155
037MAY 314158
038WP9703438 Whirlpool Snap Retaining Ring
039MAY 901220
