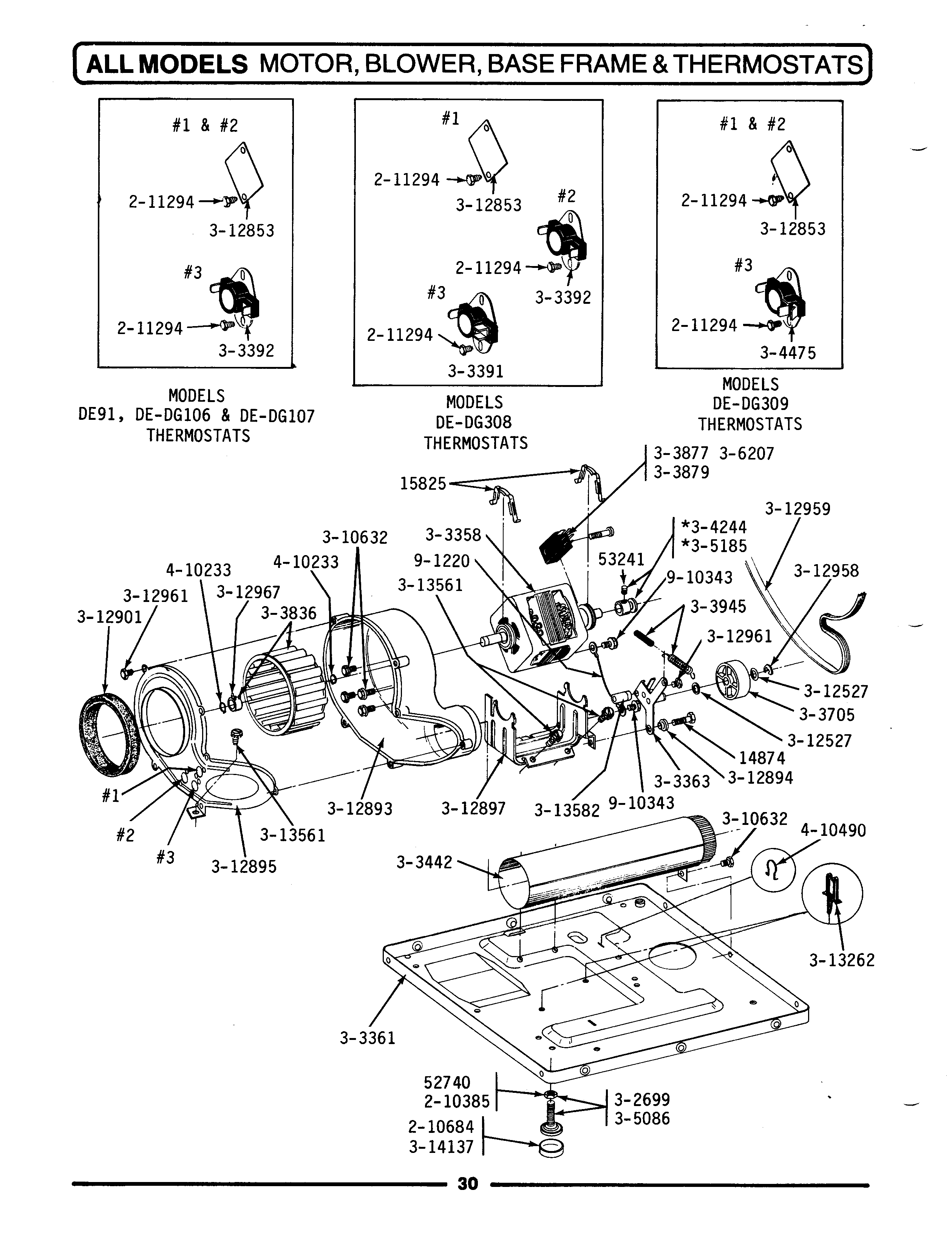

DG91 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	WP62739 Whirlpool Nut
004	MAY Y053241
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	WP90767 Whirlpool Screw
008	LEG, ADJUSTABLE (W/NUT)—S
009	W10410999 Whirlpool Dryer Drive Motor
010	MAY Y303361
011	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
012	WP694674 Whirlpool Cycling Thermostat
013	MAY Y303442
014	WP6-3037050 Whirlpool Idler Pulley
015	Y303836 Whirlpool Dryer Blower Wheel
016	MAY Y303877
017	MAY Y303879
018	MAY Y303945
019	WP6-3042440 Whirlpool Motor Pulley
020	W10176519 Whirlpool Leveling Feet
021	MAY Y305185
022	MAY 306207
023	MAY Y310632
024	MAY Y312527
025	MAY Y312853
026	MAY Y312893
027	SLEEVE, IDLER ARM —-S
028	MAY Y312895
029	DOWEL PIN FOR HANDLE
030	WPY312901 Whirlpool Blow Seal
031	WP354987 Whirlpool C-Clip
032	WPY312959 Whirlpool Dryer Drum Belt
033	WPW10116751 Whirlpool Screw
034	WP312967 Whirlpool Clamp
035	MAY Y313262
036	MAY Y313561
037	WPW10116756 Whirlpool Spacer
038	WPY314137 Whirlpool Rubber Foot
039	WP9703438 Whirlpool Snap Retaining Ring
040	MAY 410490
041	MAY 901220
042	MAY 910343
