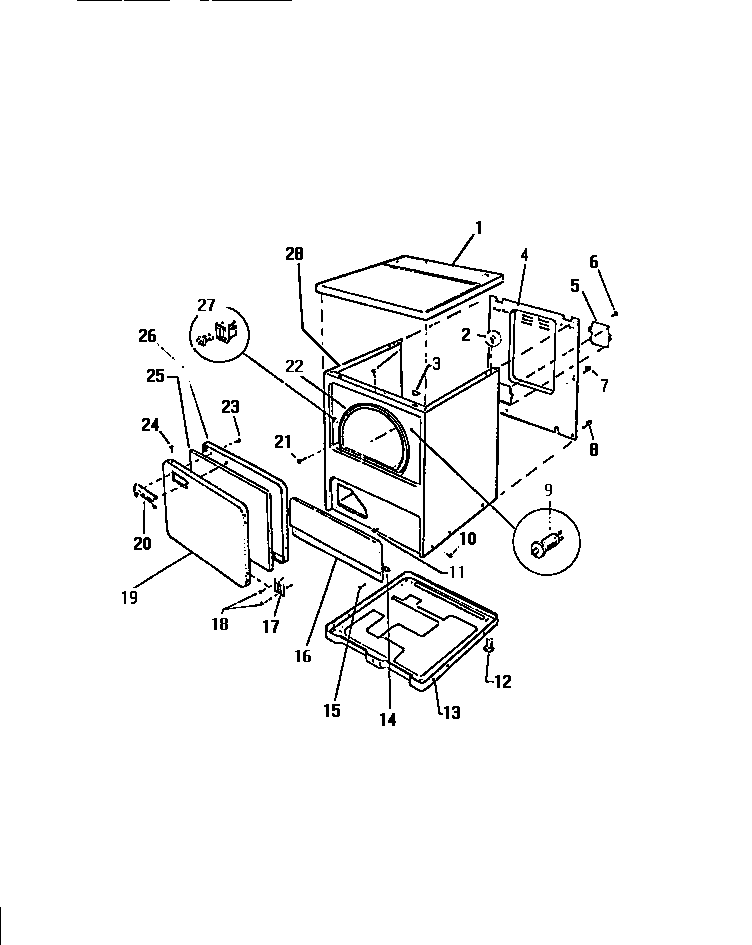

DGA500A0T 03 – CABINET

Products

PositionProduct
*90326WCI F139772-000
*90342TOUCH-UP SPRAY PAINT (6 OZ. AEROSOL), WHEAT
*90324WCI F139719-100
*90327INSTAL. INSTRUCTIONS
*90325WCI F140241-000
1TOP PANEL, WHEAT
1TOP PANEL, WHITE
1TOP PANEL, ALMOND
2WCI F001345-000
3WCI F130448-000
4WCI F139218-526
5ACCESS PLATE TERM. BLOCK
65303015671 Frigidaire Bracket Termination Screw
9DOOR SWITCH
10131205500 Frigidaire Screw
11SCREW (6)
12WCI F137033-000
13WCI F140281-026
14WCI F133279-000
14SPEED NUT, ELECTRIC MODELS (2)
15WCI F066904-000
16ACCESS PANEL, WHEAT
16ACCESS PANEL, ALMOND
16ACCESS PANEL, WHITE
17WCI F078319-000
19OUTER DOOR PANEL, WHEAT
20WCI F078673-200
21216858001 Frigidaire Refrigerator Screw
22WCI F133271-000
23WCI F136470-000
24SCREW (3)
25WCI F132413-000
26WCI F137873-028
275366021400 Frigidaire Door Latch & Metal Strike
