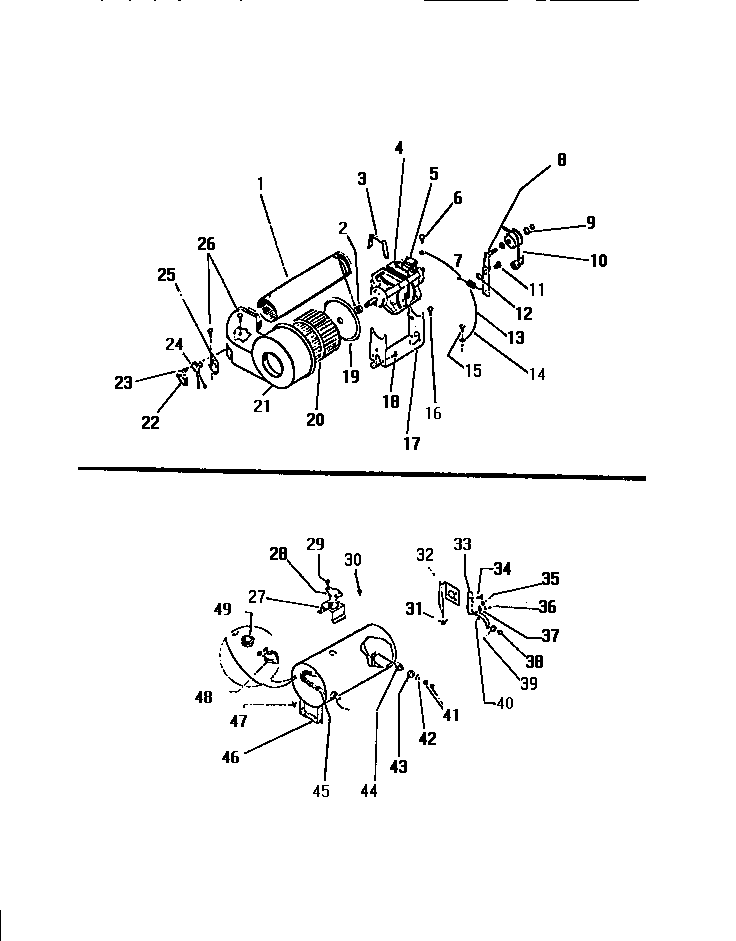

DGA500A1D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*01016	INSULATOR, FEMALE (2)
*01014	WCI F133285-000
*01026	WCI F131735-000
*01017	CLIP (11)
*01013	HTR. HOUSING
*01015	INSULATOR, MALE (2)
*01019	NUT (2)
*01018	WASHER (2)
1	EXHAUST PIPE ASSEMBLY
2	WCI 064360-000
3	MOTOR CLIP (2)
4A	MOTOR AND PULLEY ASSEMBLY, GE
5	MOTOR SWITCH (GE)
5A	MOTOR SWITCH (EMERSON)
6	WCI F132144-000
7	WCI F131652-000
8	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
10	BELT
11	WCI F079485-000
12	WCI F076822-000
13	WCI F132353-000
14A	GROUND WIRE, GAS
16	SEMS SCREW
17	WCI F078190-026
18	5303015671 Frigidaire Bracket Termination Screw
19	WCI F064354-028
20	WCI F076829-000
21	WCI F078201-100
22	CONTROL THERMO
23	SCREW (6)
24	EXTERNAL THERMO HTR (GAS)
25	BRACKET
