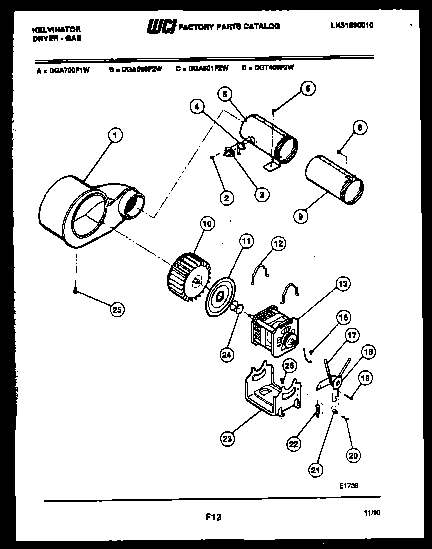

DGA501F2D 05 – BLOWER AND DRIVE PARTS

Products

Position	Product
1	FAN HOUSING ASSY (1)
2	SCREW
3	3204307 Frigidaire Dryer Thermostat Control, L135
4	WCI 5308013214
5	TUBE ASSEMBLY THERMOSTAT (1)
6	SCREW (2)
8	SCREW (4)
9	EXHAUST DUCT (1)
10	BLOWER WHEEL (1)
11	FAN COVER (1)
12	MOTOR CLAMP (2)
13	MOTOR & PULLEY ASSEMBLY (1)
16	SCREW (2)
17	5303281154 Frigidaire Dryer Belt (Flat Style)
18	IDLER ASSEMBLY (1)
19	SCREW-STOP
20	WCI 3281073
21	SPACER (1)
22	5303281085 Frigidaire Spring Idler
24	WCI 3281083
25	WCI 3281036
26	WCI 3281077
