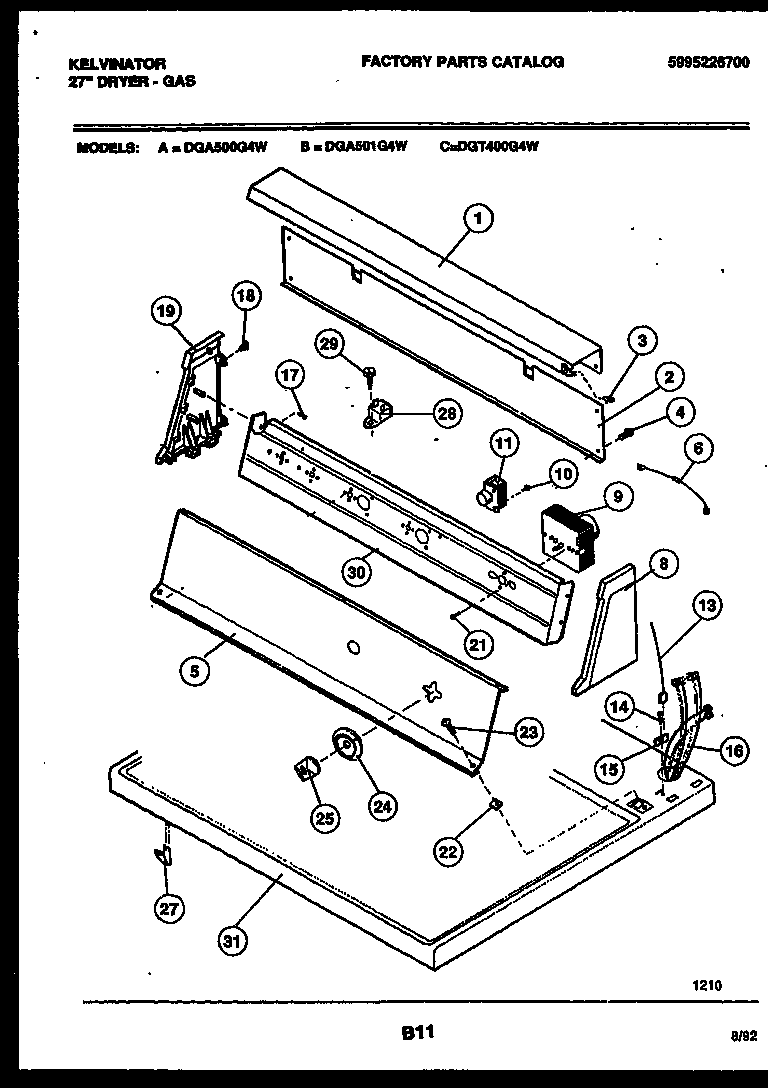

DGA501G4W 04 – CONSOLE AND CONTROL PARTS

DGA501G4W 04 – CONSOLE AND CONTROL PARTS

Written by

in

DGA501G4W 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI 3201609
2WCI 3201349
3WCI 5308010825
45303015671 Frigidaire Bracket Termination Screw
5PANEL – CONTROL
6REGISTER
8WCI 3206005
9WCI 3201336
10WCI 08020804
11SWITCH – PUSH TO START
13AWCI 5303212827
13WCI 3201385
14131243800 Frigidaire Screw
15WCI 5379171000
16A5303303590 Frigidaire Dryer 4.0" Cable Tie
16WCI 131005600
17131205100 Frigidaire Screw
18WCI 5303210923
19WCI 3206007
21SCREW (2)
22CLIP
23WCI 3205820
24WCI 5308015702
25KNOB TIMER
273205821 Frigidaire Clip
28WCI 5308004087
29WCI 08010804
30WCI 3205822
31PANEL-TOP-WHITE
