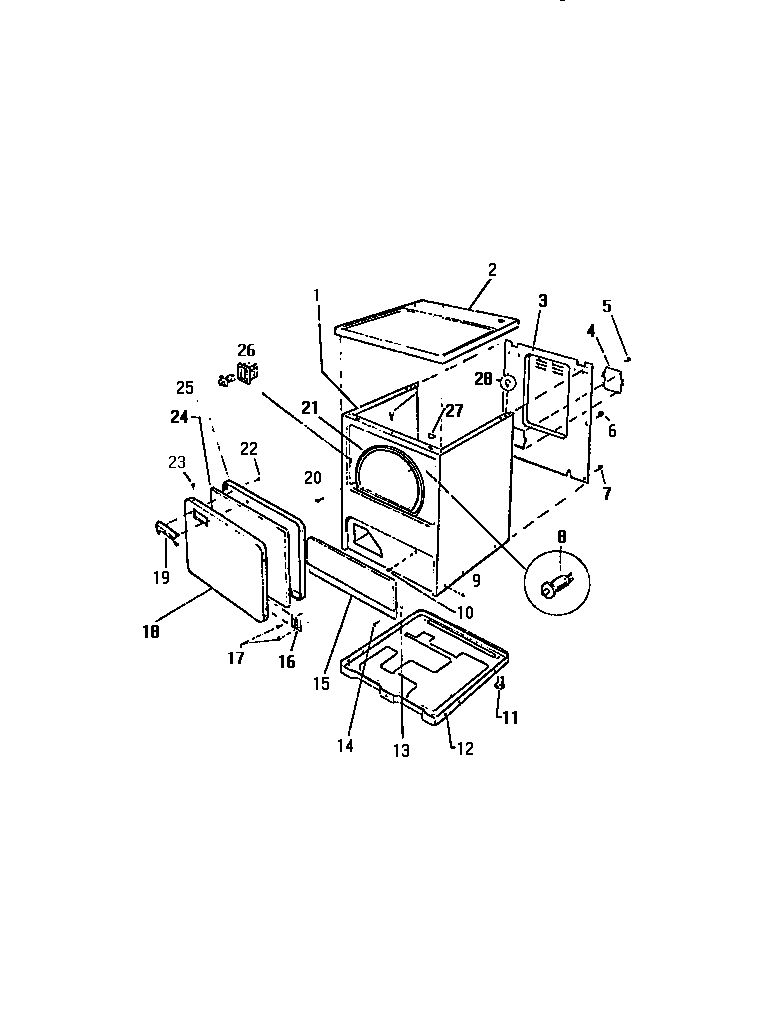

DGA600A1W 03 – CABINET

Products

Position	Product
*42655	INSTALL INSTRUCTION
*42658	WCI 140369-000
*42656	WCI 140330-000
*42675	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI F134920-332
2	TOP PANEL, WHITE
3	WCI F139218-526
4	ACCESS PLATE TERM. BLOCK
5	5303015671 Frigidaire Bracket Termination Screw
8	DOOR SWITCH
9	131205500 Frigidaire Screw
10	SCREW (6)
11	WCI F137033-000
12	WCI F140281-026
13	WCI F133279-000
13A	SPEED NUT, ELECTRIC MODELS (2)
14	WCI F066904-000
15	ACCESS PANEL, WHITE
16	WCI F078319-000
18	OUTER DOOR PANEL, WHITE
19	WCI F078673-200
20	216858001 Frigidaire Refrigerator Screw
21	WCI F133271-000
22	WCI F136470-000
23	SCREW (3)
24	WCI F132413-000
25	WCI F137873-028
26	5366021400 Frigidaire Door Latch & Metal Strike
27	WCI F130448-000
28	WCI F001345-000
