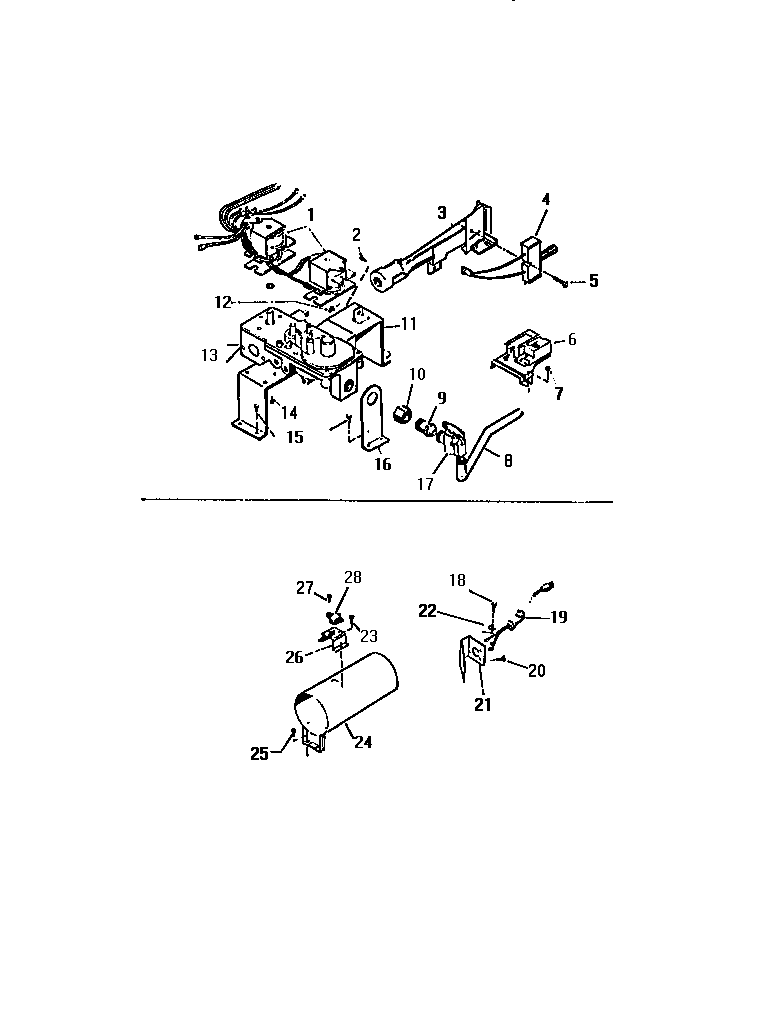

DGA800A0W 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

DGA800A0W 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

Written by

in

DGA800A0W 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

Products

PositionProduct
*41850GAS CONVERSION KIT, L.P. TO NATURAL
*41851GAS CONVERSION KIT, NATURAL TO L.P.
1WCI F133075-000
2131243800 Frigidaire Screw
3WCI F139744-000
45303937186 Frigidaire Dryer Flat Igniter Assembly
5WCI F134225-000
65303281135 Frigidaire Gas Dryer Flame Sensor Radiant
8WCI F078202-100
9WCI F062791-300
10WCI F062792-300
11WCI F076992-000
12AWCI F066452-019
12WCI F066452-020
13WCI F139745-000
13AWCI F137060-000
14WCI F132144-000
16WCI F079904-000
17WCI F133170-000
18134154100 Frigidaire Screw 10-32 x 0.375 Co
19SERVICE CORD
21WCI F063536-026
22WCI F078101-000
24COMBUSTION CHAMBER
26WCI F076956-200
275303015671 Frigidaire Bracket Termination Screw
28SAFETY THERMO
