DGBD2432KF1 13 – RACKS

DGBD2432KF1 13 – RACKS

Written by

in

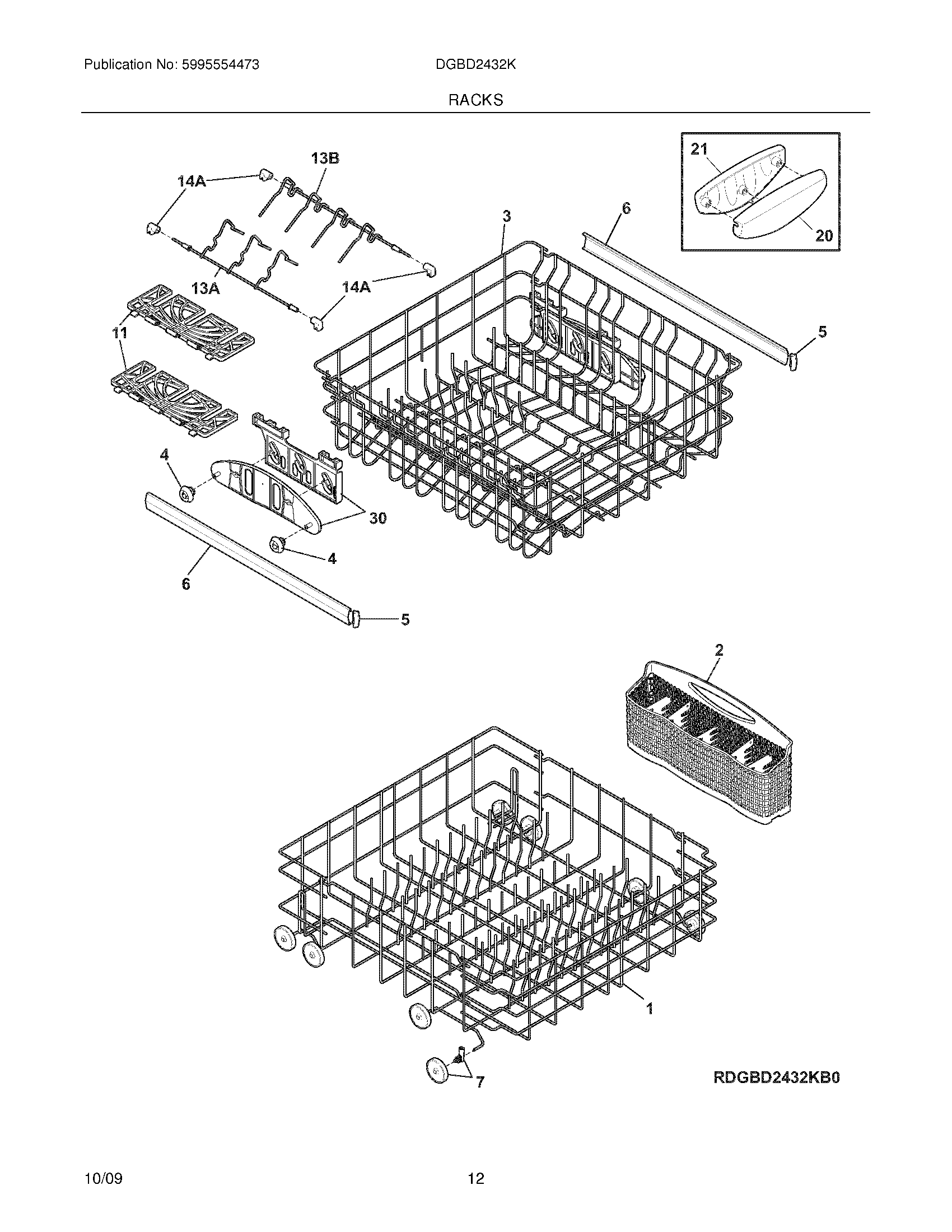

DGBD2432KF1 13 – RACKS

Products

PositionProduct
15304533200 Frigidaire Dishwasher Rack with Wheels
25304535382 Frigidaire Basket Assembly
35304535250 Frigidaire Dishwasher Upper Rack Assembly
45304535381 Frigidaire Dishwasher Dishrack Wheel and Bushing
55304506510 Frigidaire Dishrack Slide Rail Stop/Endcap
6UPPER RACK SLIDE
75304532229 Frigidaire Dishwasher Lower Rack Wheel & Bushing Assembly
11CUP SHELF
13B5304506535 Frigidaire Dishwasher Fence
13A154740304 Frigidaire Dishwasher Fold-Down Tine Row Fence
14A5304506508 Frigidaire Bracket Support
205304506509 Frigidaire Dishwasher Handle
215304504913 Frigidaire Dishwasher Handle
30A01986801 Frigidaire Upper Rack Assembly
