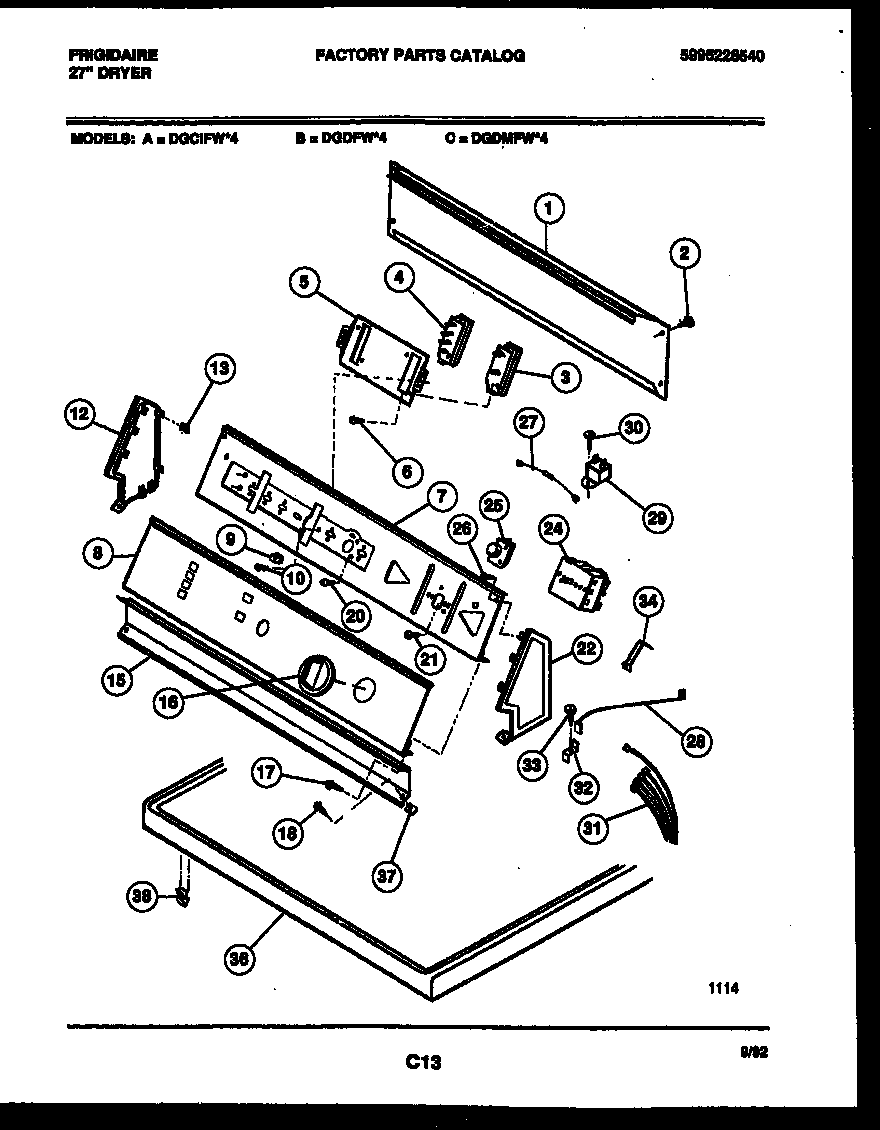

DGCIFL4 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
3	WCI 08010818
4	SWITCH PUSHBUTTON (4)
5	WCI 3201324
6	WCI 08010804
7	WCI 131013300
8	WCI 3201327
9	BUTTON PUSHBUTTON SWITCH
10	SCREW (3)
12	END CAP RH
13	WCI 08014350
15	WCI 3205875
16	TIMER KNOB AND INDICATOR ASSEMBLY
17	WCI 08010782
18	WCI 3205820
20	WCI 08001544
21	SCREW (2)
22	WCI 3205876
24	WCI 3201335
25	WCI 5303212833
26	SCREW (2)
28	WCI 3201385
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
31	WCI 131005100
32	WCI 5379171000
33	131243800 Frigidaire Screw
34	WCI 08014349
38	3205821 Frigidaire Clip
