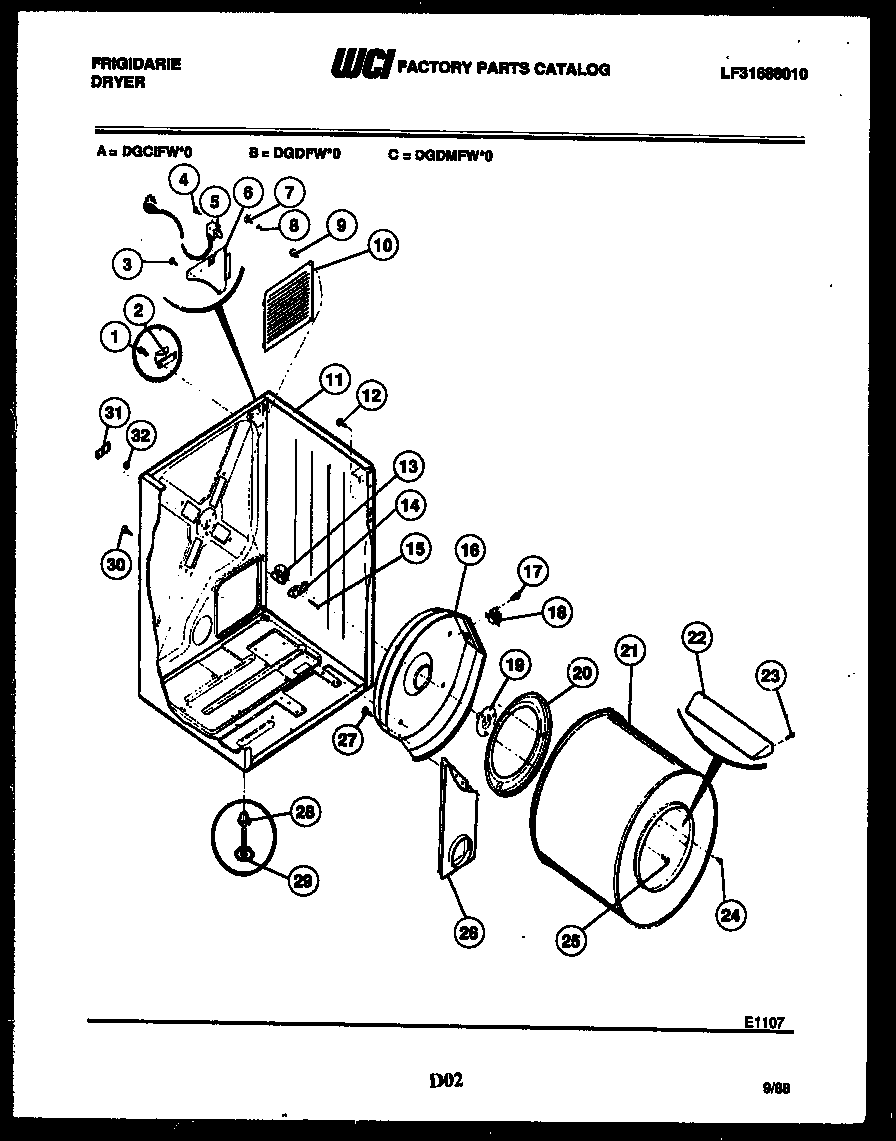

DGCIFW0 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*24509WCI 5303281153]
1WCI 08011338
2WCI 3281175
3SCREW (1)
5SERVICE CORD (1)
6WCI 3281130
7134154100 Frigidaire Screw 10-32 x 0.375 Co
8WASHER
10COVER PLATE (1)
11CABINET ASSEMBLY (WHITE) (1)
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16HEATER HAG & SEAL ASSEMBLY (1)
17SCREW (2)
185308015399 Frigidaire P-1 THERMSTAT-Safety
195303931781 Frigidaire Shaft
203204254 Frigidaire Baffle Assembly
21WCI 3201199
22137552900 Frigidaire Vane
23131382300 Frigidaire Screw-VANE
24SCREW (3)
25SCREW (INCLUDED IN REAR BEARING KIT) (3)
26DUCT-HEAT
27SCREW (2)
28WCI 3201202
29WCI 3281032
30SCREW (4)
315303281020 Frigidaire Ball Clip
325303281019 Frigidaire Ball Assembly
