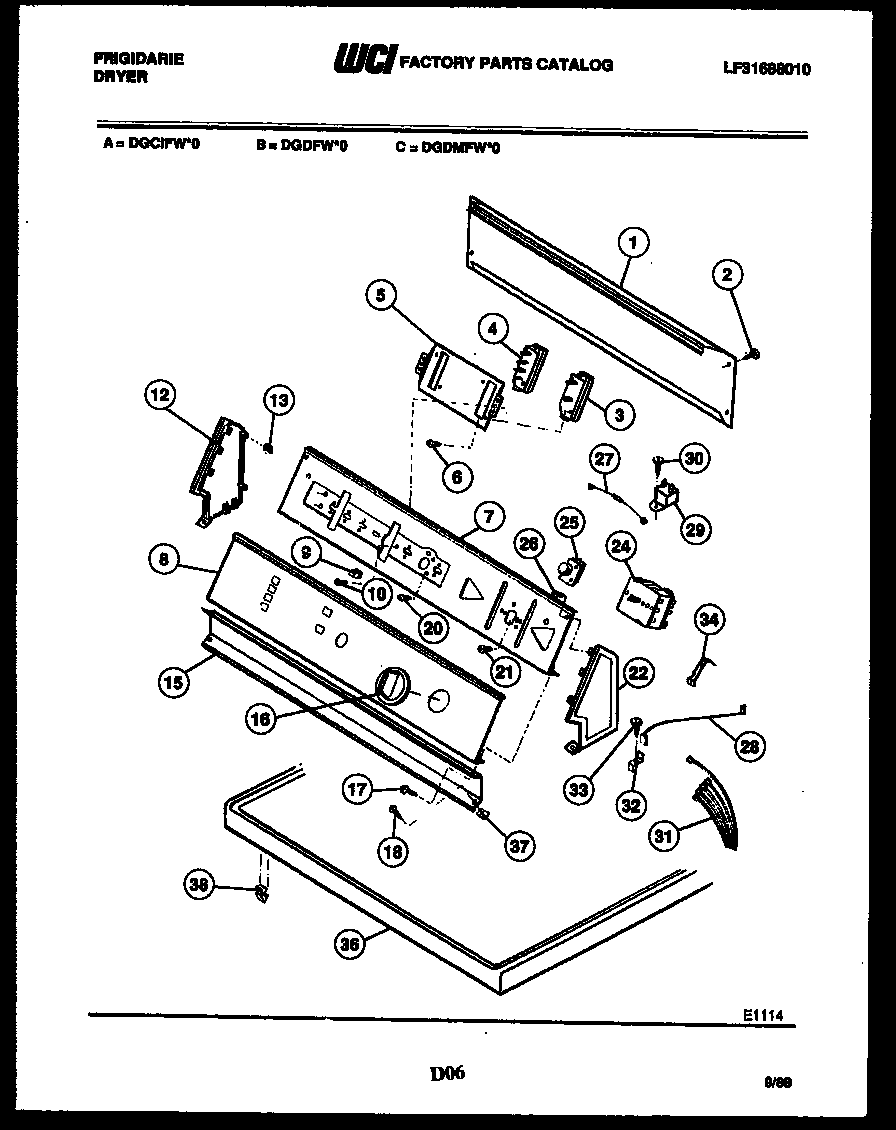

DGCIFW0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
3	WCI 08010818
4	SWITCH PUSHBUTTON (4)
5	WCI 3201324
7	WCI 3201325
8	WCI 3201327
9	BUTTON PUSHBUTTON SWITCH
10	SCREW (3)
12	WCI 08010783
13	WCI 08014350
15	WCI 3201333
16	TIMER KNOB AND INDICATOR ASSEMBLY
17	WCI 08010782
18	WCI 08011318
20	WCI 08001544
21	WCI 08006636
22	WCI 08010787
24	WCI 3201335
25	WCI 1132293
26	SCREW (2)
28	WIRE-GROUND
29	WCI 3161271
30	WCI 08010804
31	WCI 3201342
31A	5303303590 Frigidaire Dryer 4.0" Cable Tie
32	WCI 08002341
33	131243800 Frigidaire Screw
34	WCI 08014349
36	PANEL-TOP-WHITE
37	WCI 08001912
38	SPRING CATCH
