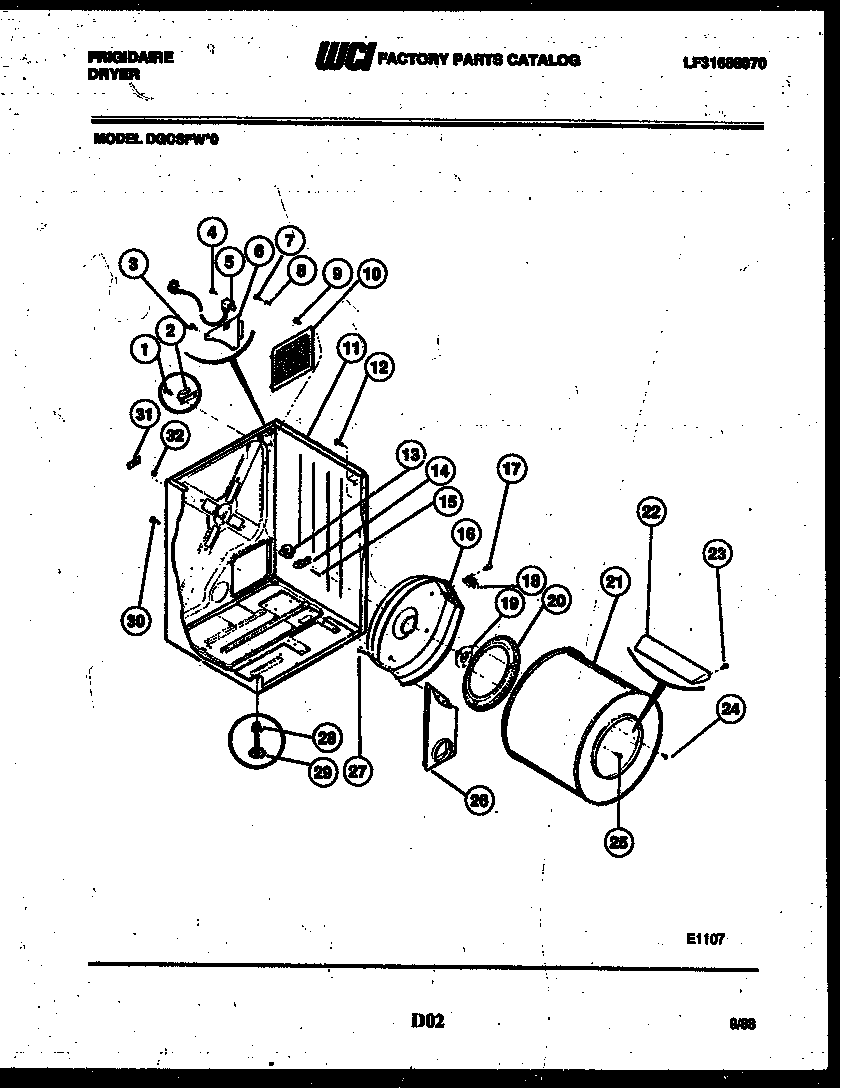

DGCSFL0 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
1	WCI 08011338
2	WCI 3281175
3	SCREW (1)
5	SERVICE CORD (1)
6	WCI 3281130
7	134154100 Frigidaire Screw 10-32 x 0.375 Co
8	WASHER
10	COVER PLATE (1)
11	CABINET ASSEMBLY (WHITE) (1)
11	CABINET ASSEMBLY (ALMOND) (1)
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	HEATER HAG & SEAL ASSEMBLY (1)
17	SCREW (2)
18	5308015399 Frigidaire P-1 THERMSTAT-Safety
19	5303931781 Frigidaire Shaft
20	3204254 Frigidaire Baffle Assembly
21	WCI 3201199
22	137552900 Frigidaire Vane
23	131382300 Frigidaire Screw-VANE
24	WCI 3291029
25	SCREW (INCLUDED IN REAR BEARING KIT) (3)
26	DUCT-HEAT
27	SCREW (2)
28	WCI 3201202
29	WCI 3281032
30	SCREW (4)
31	5303281020 Frigidaire Ball Clip
32	5303281019 Frigidaire Ball Assembly
32A	WCI 5303281153]
