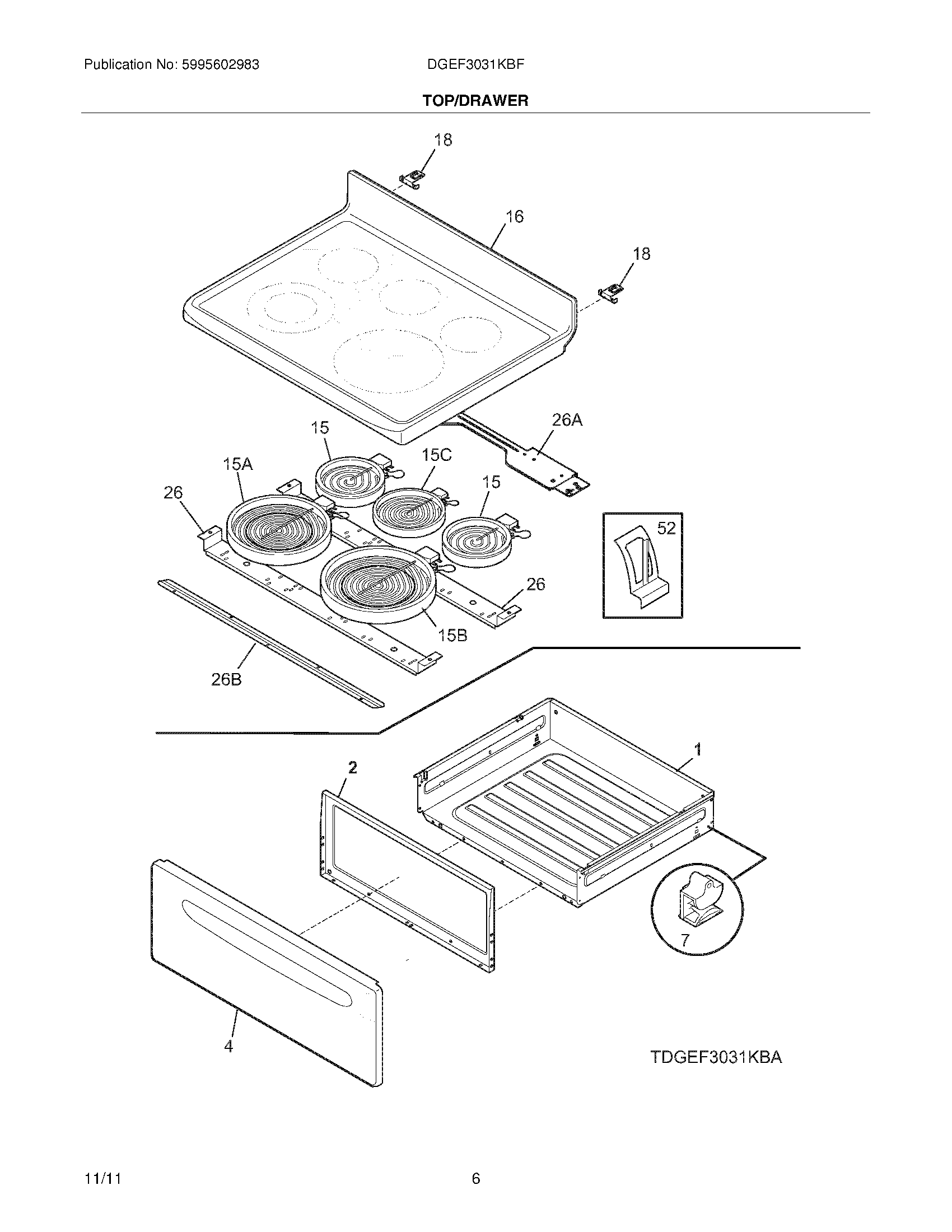

DGEF3031KBF 07 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5308014215 Frigidaire Oven Screw
NI	HARNESS, WIRING, SURFACE UNITS
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316468101 Frigidaire Cleaner Assembly
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	316403520 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
15A	5304533520 Frigidaire Element
15	318178110 Frigidaire Oven Range 6" Surface Element
15C	ELEMENT,RADIANT,100W,WARMER
15B	316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
16	316531973 Frigidaire Oven Maintop
18	316580800 Frigidaire Hinge Bracket
26B	WCI 316214202
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
52	316461700 Frigidaire Oven Clip Assembly
