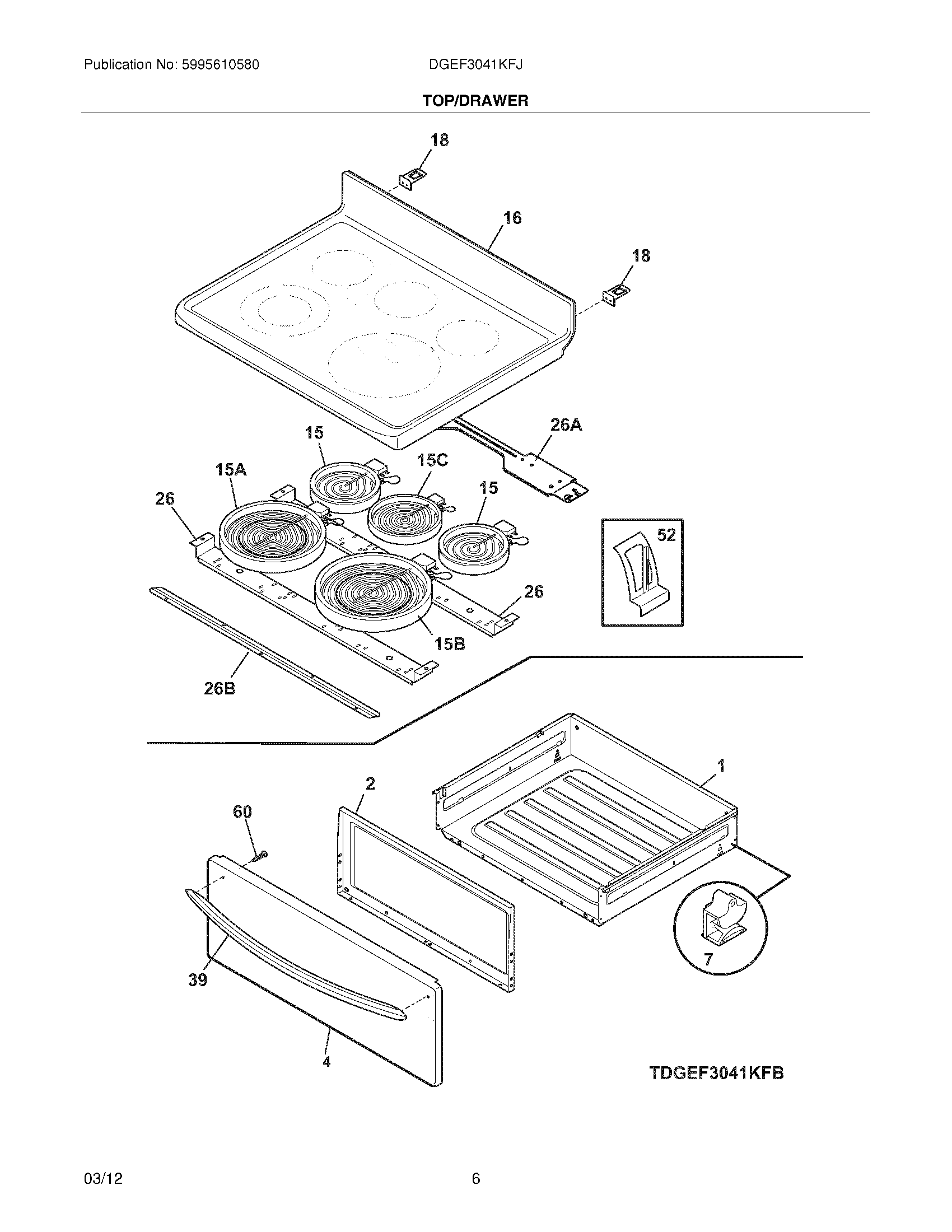

DGEF3041KFJ 07 – TOP/DRAWER

DGEF3041KFJ 07 – TOP/DRAWER

Written by

in

DGEF3041KFJ 07 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5308014215 Frigidaire Oven Screw
NIHARNESS, WIRING, SURFACE UNITS
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316468101 Frigidaire Cleaner Assembly
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
4WCI 316409407
7316407402 Frigidaire Range Drawer Glide
15A5304533520 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
15CELEMENT,RADIANT,100W,WARMER
15B316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
16316531973 Frigidaire Oven Maintop
18316580800 Frigidaire Hinge Bracket
26BWCI 316214202
265304500986 Frigidaire Oven Channel
26A316498200 Frigidaire Oven Bracket
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
