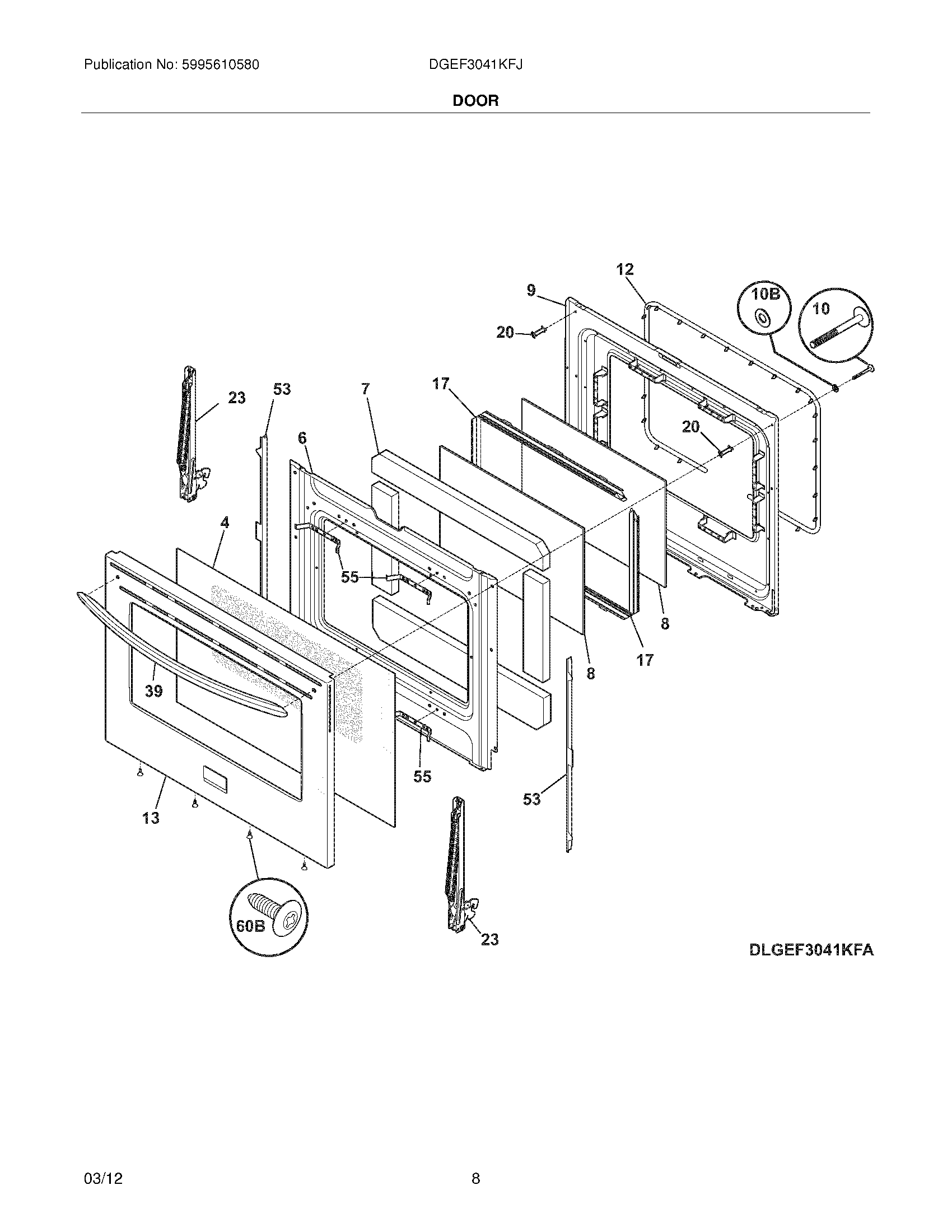

DGEF3041KFJ 09 – DOOR

DGEF3041KFJ 09 – DOOR

Written by

in

DGEF3041KFJ 09 – DOOR

Products

PositionProduct
NI316418900 Frigidaire Oven Screw
4316452758 Frigidaire Oven Outer Door Glass
6316406328 Frigidaire Shield
7316405600 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423701
10Screw,handle mtg. ,10-24 x 1.75“ ,(2)
10B316008401 Frigidaire Washer P-1
12316405000 Frigidaire Oven Seal
13WCI 316407911
175304504811 Frigidaire Glass Spacer
20316284100 Frigidaire Oven Spacer Assembly
23WCI 316456309
535304532042 Frigidaire Shield-Filler Door
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
