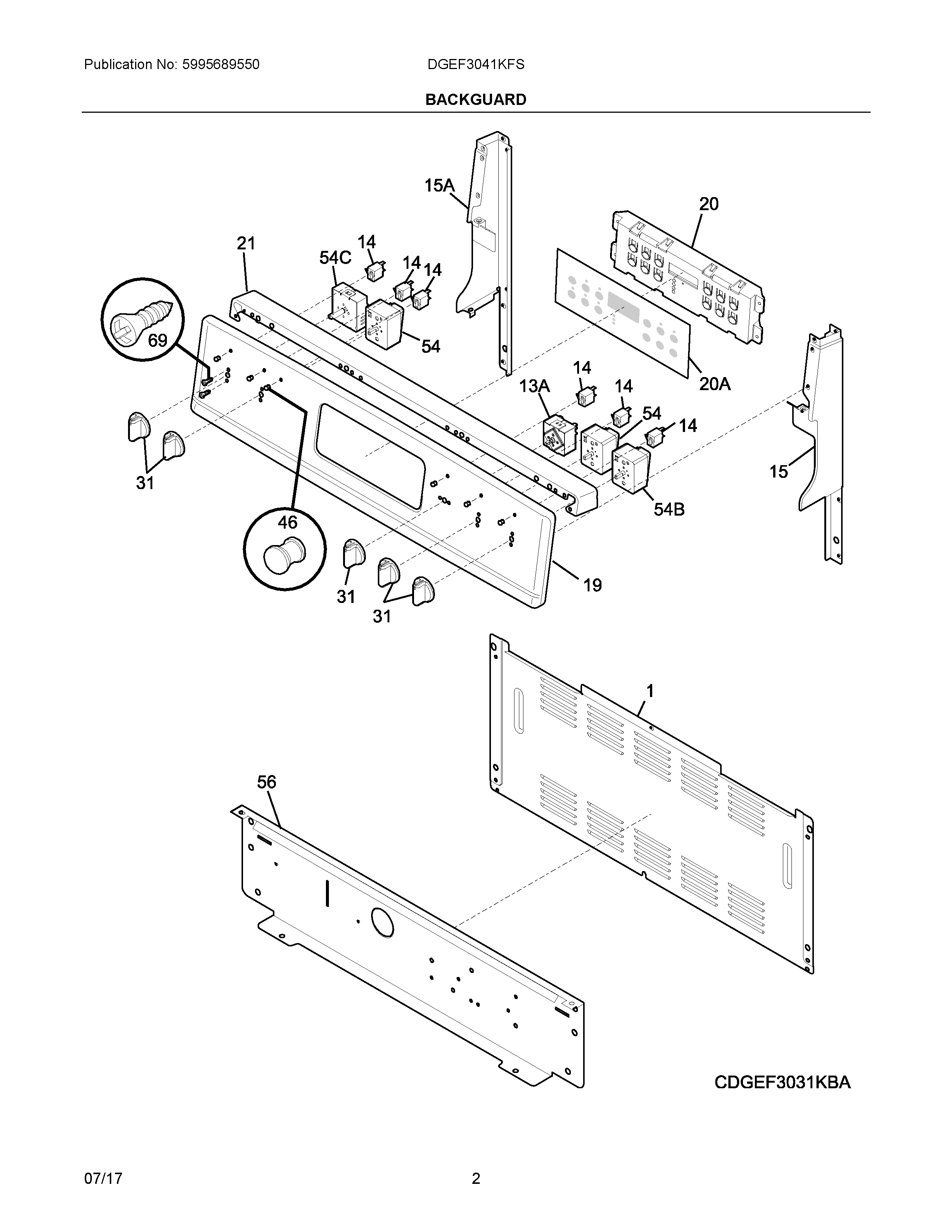

DGEF3041KFS 02 – BACKGUARD

DGEF3041KFS 02 – BACKGUARD

Written by

in

DGEF3041KFS 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1WCI 316557600
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15316546710 Frigidaire Oven Cap
15ACAP, BACKGUARD, BLACK, LH END
19WCI 316572436
20A316419339 Frigidaire Oven Overlay
205304515069 Frigidaire Oven Electronic Clock/Timer Range
21316546605 Frigidaire Oven Cap
31WCI 316564402
46316557300 Frigidaire Range Indicator Light Lens
54316436000 Frigidaire Oven Range Surface Element Switch
54C316238201 Frigidaire Oven Switch
54B316436001 Frigidaire Oven Range Infinite Burner Switch
56316234045 Frigidaire Oven Shield
695303288565 Frigidaire Screw
