DGES388DB3 05 – BODY
Written by
in

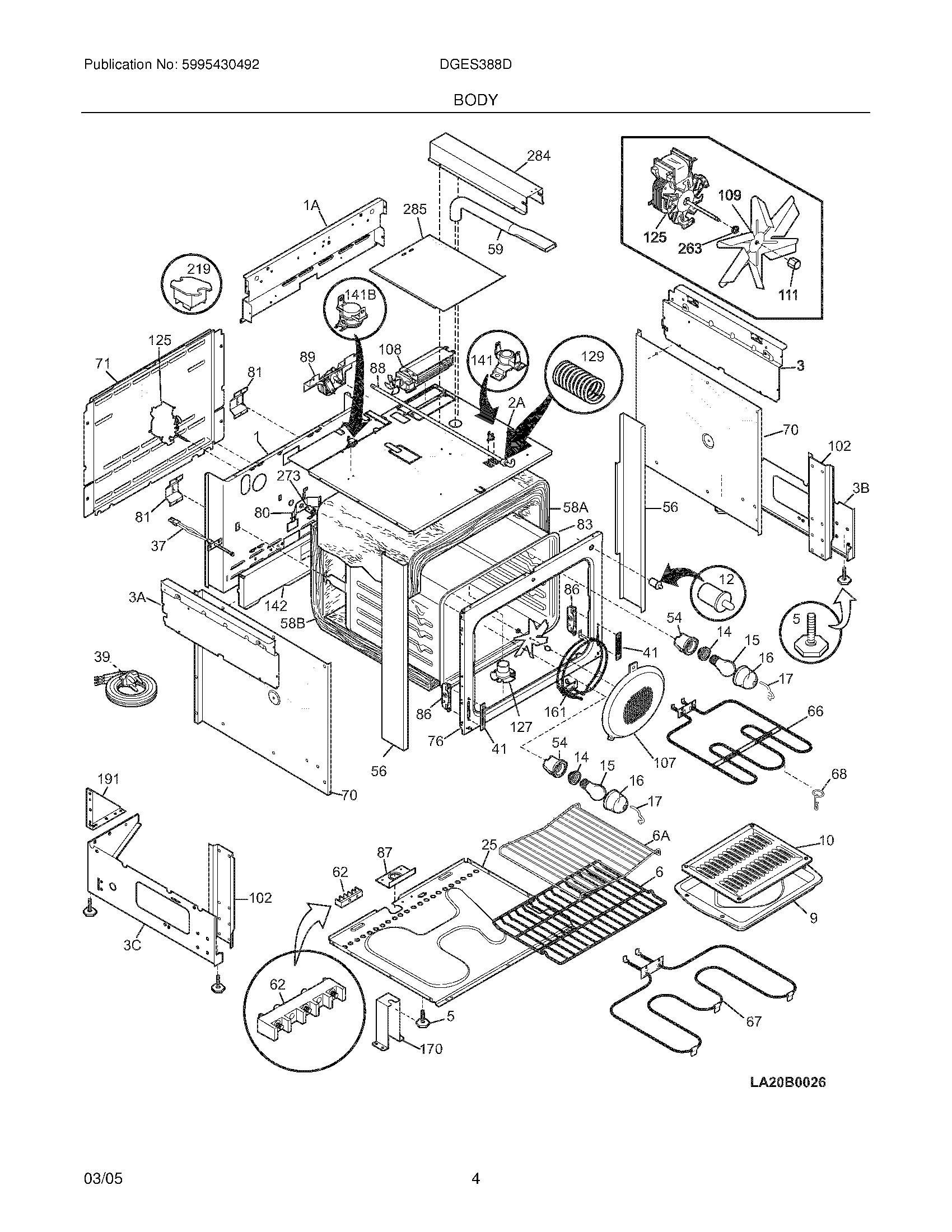

DGES388DB3 05 – BODY
Products
Position
Product
NI
SCREW,TRUSS HEAD,8-18 X 0.375
NI
5304436864 Frigidaire WASHER
NI
318167300 Frigidaire Clip
NI
5303307980 Frigidaire Oven Screw
NI
5303211311 Frigidaire Refrigerator Screw
NI
316205500 Frigidaire Oven Nut
NI
WCI 318120711
NI
5303323139 Frigidaire Oven Screw
NI
WCI 318226300
1A
WCI 318225101
1
WCI 318066415
2A
WCI 318227601
3
WCI 318225200
3A
WCI 318225201
3B
WCI 318160012
3C
WCI 318160013
5
318175503 Frigidaire Screw with Bolt
6A
WCI 318219500
6
318025314 Frigidaire Oven Rack
9
WCI 5303317977
10
WCI 5303317976
12
318089916 Frigidaire P-1 Light Switch
14
316116400 Frigidaire Oven Light Socket
15
316538904 Frigidaire Oven Lamp Light
16
5304524341 Frigidaire Lens
17
WCI 5304400195
25
WCI 318179113
37
316217002 Frigidaire Oven Temperature Probe
39
WCI 318113107
41
WCI 5303310526
54
WCI 318222400
56
WCI 318225902
58A
WCI 318285017
58B
WCI 318285018
59
WCI 318072534
62
5304409888 Frigidaire Oven Terminal Block with Hardware
66
318255605 Frigidaire Oven Broil Element Range
67
BAKE ELEMENT
68
5304403015 Frigidaire Oven Support
70
WCI 318194401
71
WCI 318295800
76
WCI 318225302
80
WCI 5303320846
81
WCI 318192400
83
WCI 318089616
86
WCI 5303310524
87
WCI 318111801
88
WCI 318250210
89
318095957 Frigidaire Oven Motor
102
WCI 5303311142
107
WCI 318219401
108
318073028 Frigidaire Oven Motor
109
318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111
316136600 Frigidaire Oven Range Lock Nut
112
WCI 318112701
125
WCI 316136300
127
318317100 Frigidaire Adapter Assembly
129
5303311164 Frigidaire Oven Spring
141
WCI 318003615
141
WCI 318005203
142
WCI 318123901
161
WCI 318255501
170
WCI 5304405244
191
WCI 5303304030
263
316008401 Frigidaire Washer P-1
272
WCI 318249400
284
WCI 318226600
285
WCI 318236200
←
