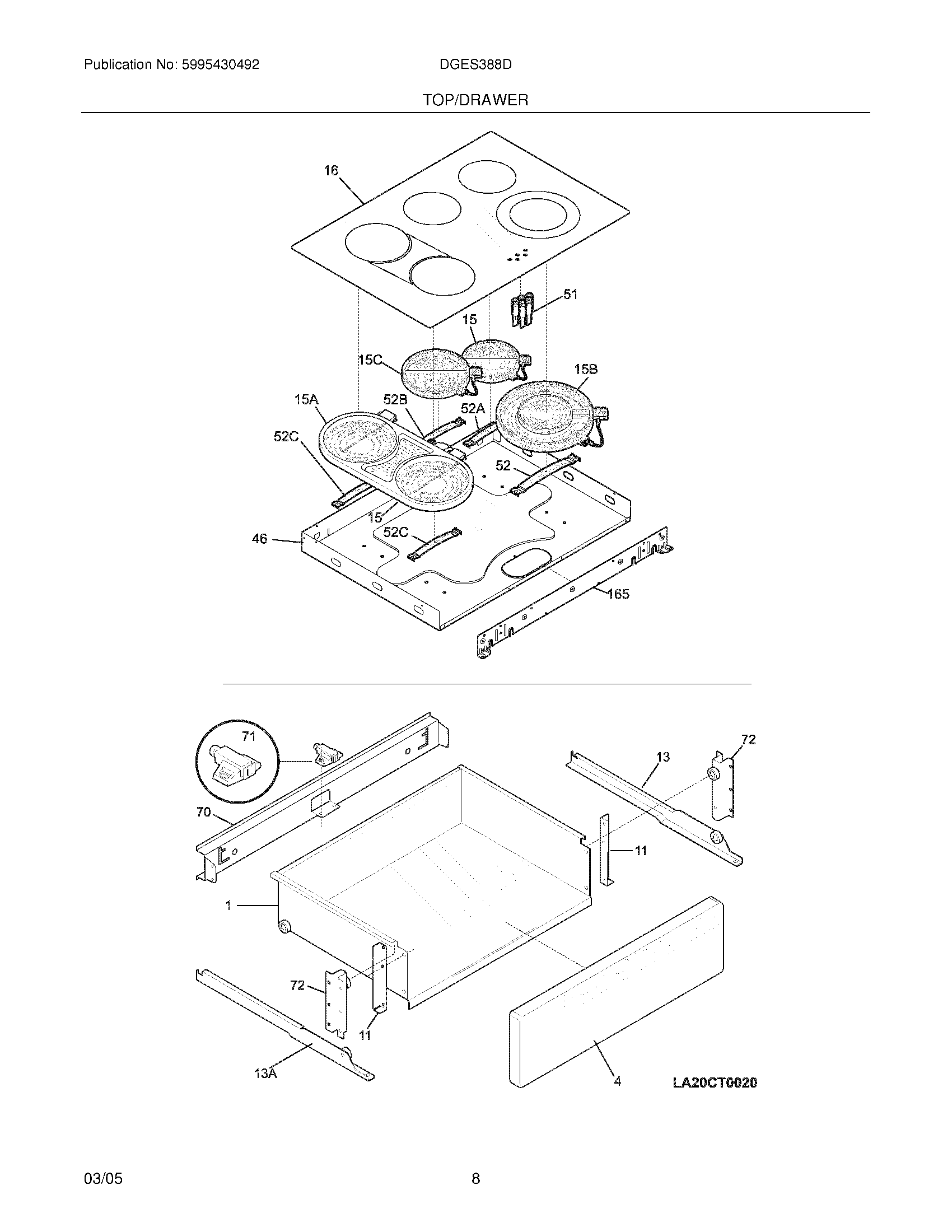

DGES388DS3 07 – TOP/DRAWER

DGES388DS3 07 – TOP/DRAWER

Written by

in

DGES388DS3 07 – TOP/DRAWER

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318248600
15304505701 Frigidaire Drawer Body with Roller
4WCI 318134011
11WCI 318263100
13WCI 5303311129
13AWCI 5303311130
15318198817 Frigidaire Oven Element
15CWCI 318198816
15A318258201 Frigidaire P-1 Element
15B318198925 Frigidaire Oven Element
16WCI 318223627
46WCI 318225401
51318044827 Frigidaire Oven Light
52CWCI 318122004
52A318122010 Frigidaire Oven Spring Assembly
52B318122006 Frigidaire Small Element Mounting Spring
52318122008 Frigidaire Oven Spring Assembly
70WCI 5303311143
71WCI 318279800
72WCI 5303311145
165WCI 318227502
193WCI 5303325173
