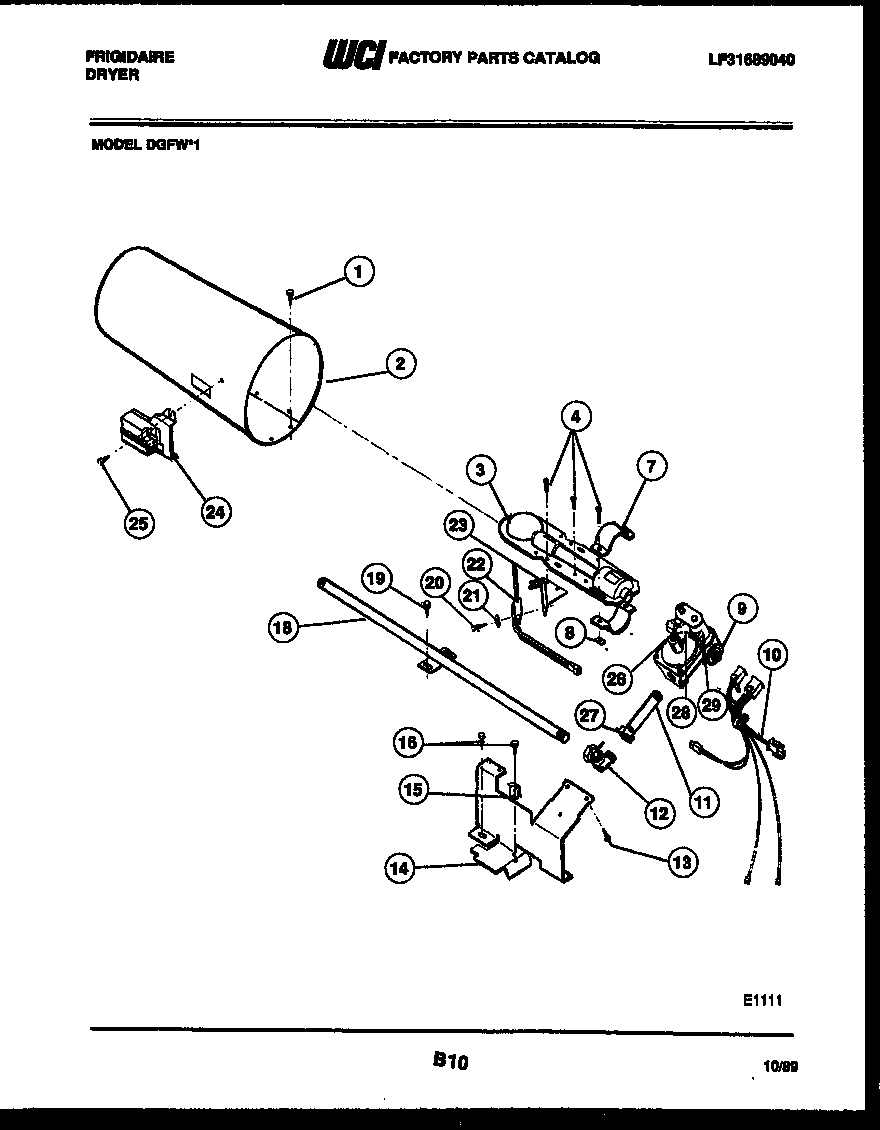

DGFW1 06 – BURNER, IGNITER AND VALVE

Products

PositionProduct
2TUBE ASSY BURNER
3WCI 3201136
7AIR SHUTTER (2)
8NUT (2)
9VALVE (1)
10HARNESS (1)
11UNION MALE CONNECTION (1)
12ANGLE VALVE (1)
13131243800 Frigidaire Screw
14BRACKET (1)
16SCREW (4)
18WCI 08015271
19CLIP
20SCREW (1)
215300809968 Frigidaire Dishwasher P-1 Washer
225303937186 Frigidaire Dryer Flat Igniter Assembly
23BRACKET-IGNITOR (1)
245303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25SCREW (2)
26AORIFICE (MFD GAS) (1)
26ORIFICE (NATURAL GAS) (1)
26BLP GAS KIT (1)
27NUT-HEX UNION
285303931775 Frigidaire Dryer Coil Kit
