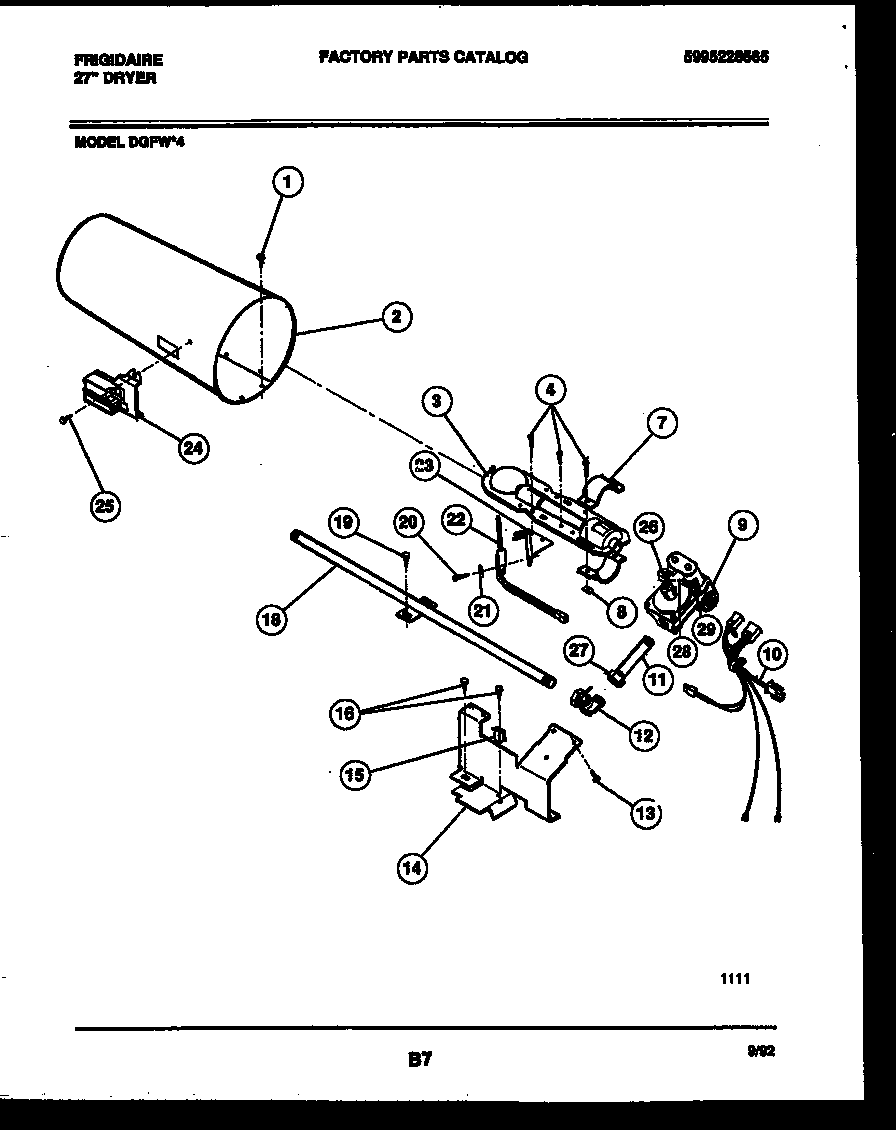

DGFW4 07 – BURNER, IGNITER AND VALVE

Products

Position	Product
*66624	5308015399 Frigidaire P-1 THERMSTAT-Safety
2	TUBE ASSY BURNER
3	WCI 3201136
7	AIR SHUTTER (2)
8	NUT (2)
9	VALVE (1)
10	HARNESS (1)
11	UNION MALE CONNECTION (1)
12	ANGLE VALVE (1)
13	131243800 Frigidaire Screw
14	BRACKET (1)
16	SCREW (4)
18	WCI 08015271
19	CLIP
20	SCREW (1)
21	5300809968 Frigidaire Dishwasher P-1 Washer
22	5303937186 Frigidaire Dryer Flat Igniter Assembly
23	BRACKET-IGNITOR (1)
24	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25	SCREW (2)
26	ORIFICE (NATURAL GAS) (1)
26	ORIFICE (MFD GAS) (1)
26	LP GAS KIT (1)
27	NUT-HEX UNION
28	5303931775 Frigidaire Dryer Coil Kit
