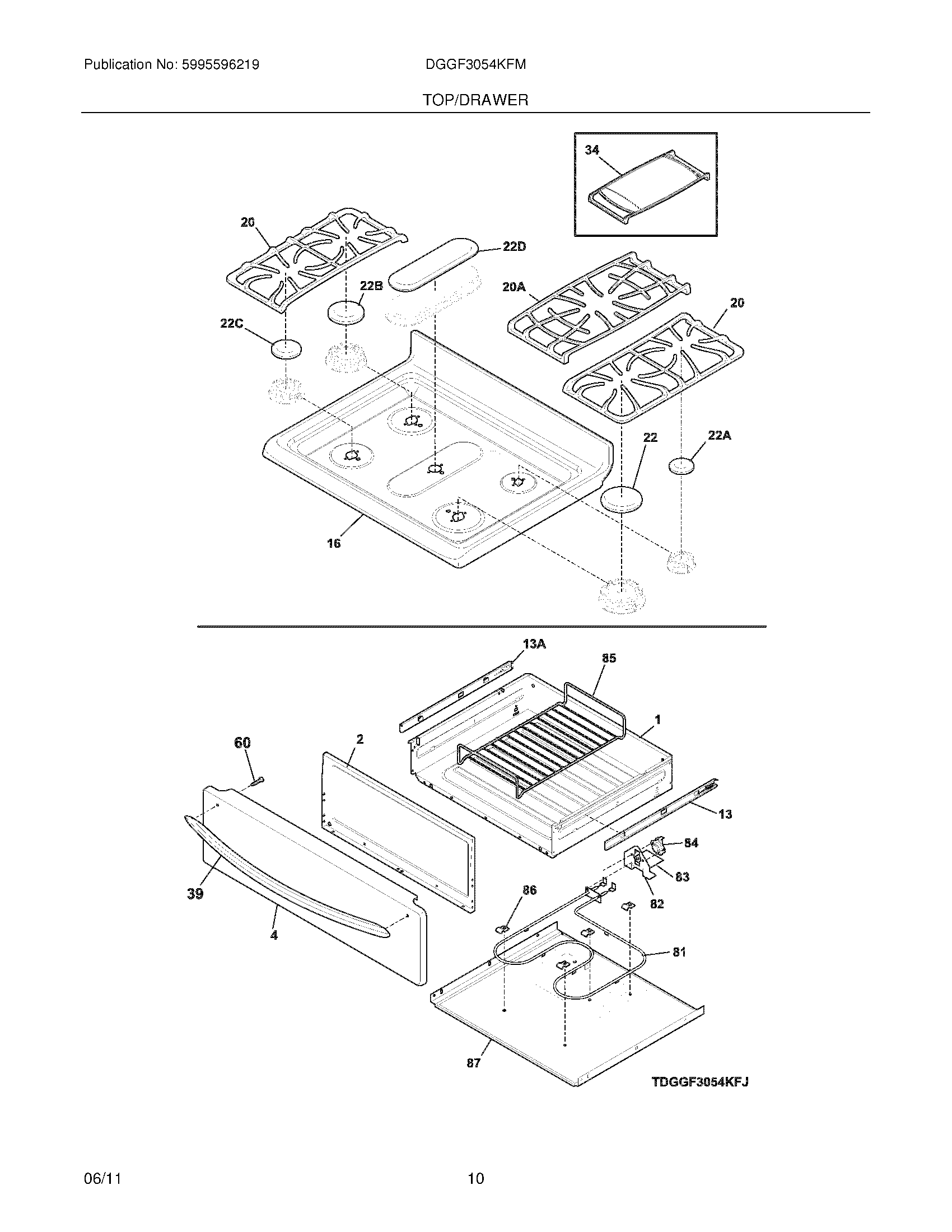

DGGF3054KFM 09 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304517539 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
1	316408905 Frigidaire Dsp Drawer
2	5304527988 Frigidaire Liner
4	5304494412 Frigidaire Oven Panel
13A	316415001 Frigidaire Oven Glide
13	316415000 Frigidaire Oven Glide
16	WCI 316469653
20A	316551802 Frigidaire Oven Grate
20	316499502 Frigidaire Oven Grate
22	5304508468 Frigidaire Oven Cap
22D	316559604 Frigidaire Oven Cap
22C	5304508442 Frigidaire Oven Surface Burner Cap
22B	5304508443 Frigidaire Oven Surface Burner Cap
22A	CAP
34	WCI 316499900
60	5304414648 Frigidaire Oven Screw
81	316437300 Frigidaire Oven Element
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	316093502 Frigidaire Thermo Disc
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091900
