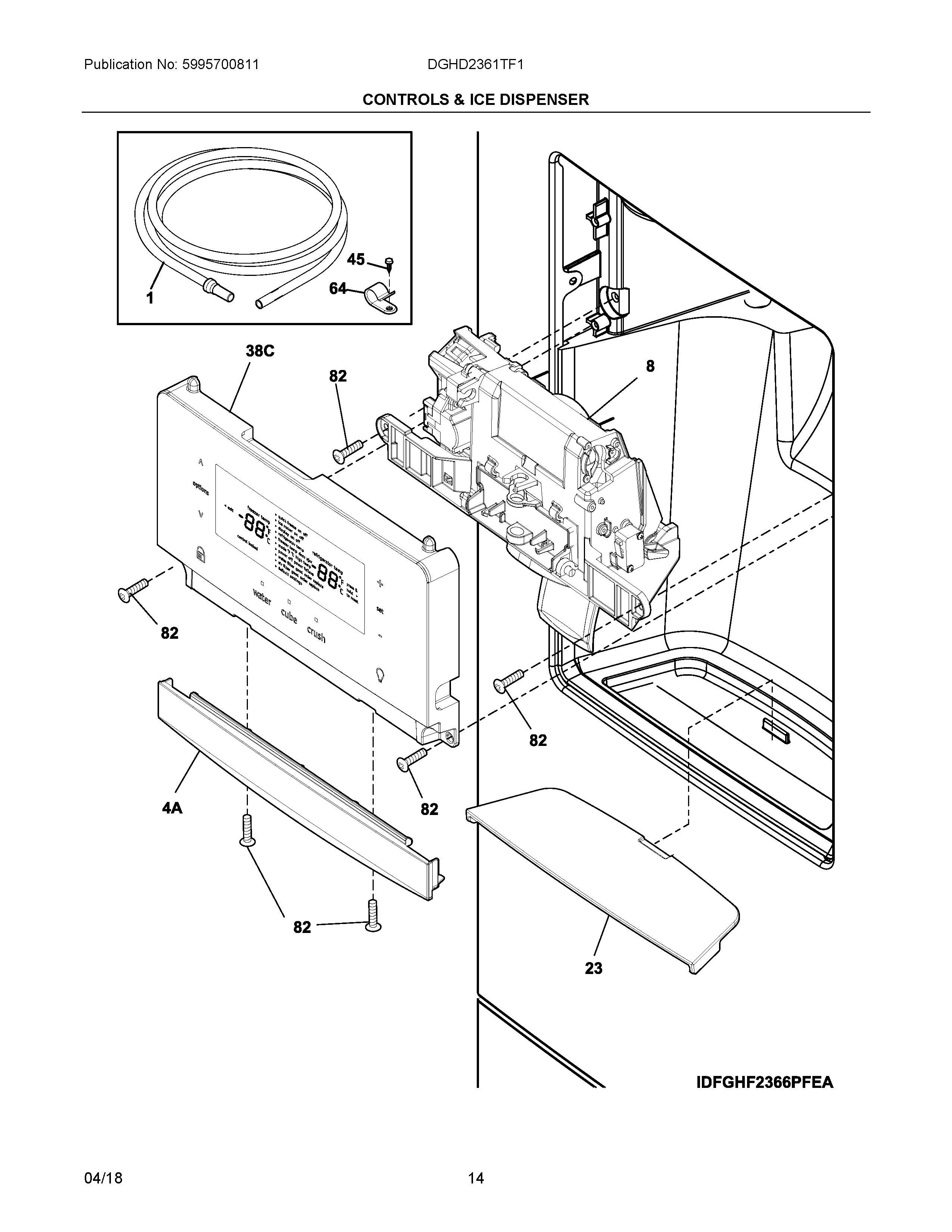

DGHD2361TF1 07 – CONTROLS & ICE DISPENSER

DGHD2361TF1 07 – CONTROLS & ICE DISPENSER

Written by

in

DGHD2361TF1 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI5304521784 Frigidaire Refrigerator Harness
NI240451503 Frigidaire Refrigerator Screw
NIC242200102 Frigidaire Refrigerator Clip
NIB241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
NIA218976435 Frigidaire Refrigerator Water Inlet Tube
1241965906 Frigidaire Refrigerator Water Tube
4A242194301 Frigidaire Refrigerator Trim
8242270106 Frigidaire Refrigerator Module
23242176503 Frigidaire Refrigerator Sump
38C5304513303 Frigidaire Refrigerator Control Assembly
455304455650 Frigidaire Refrigerator Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
