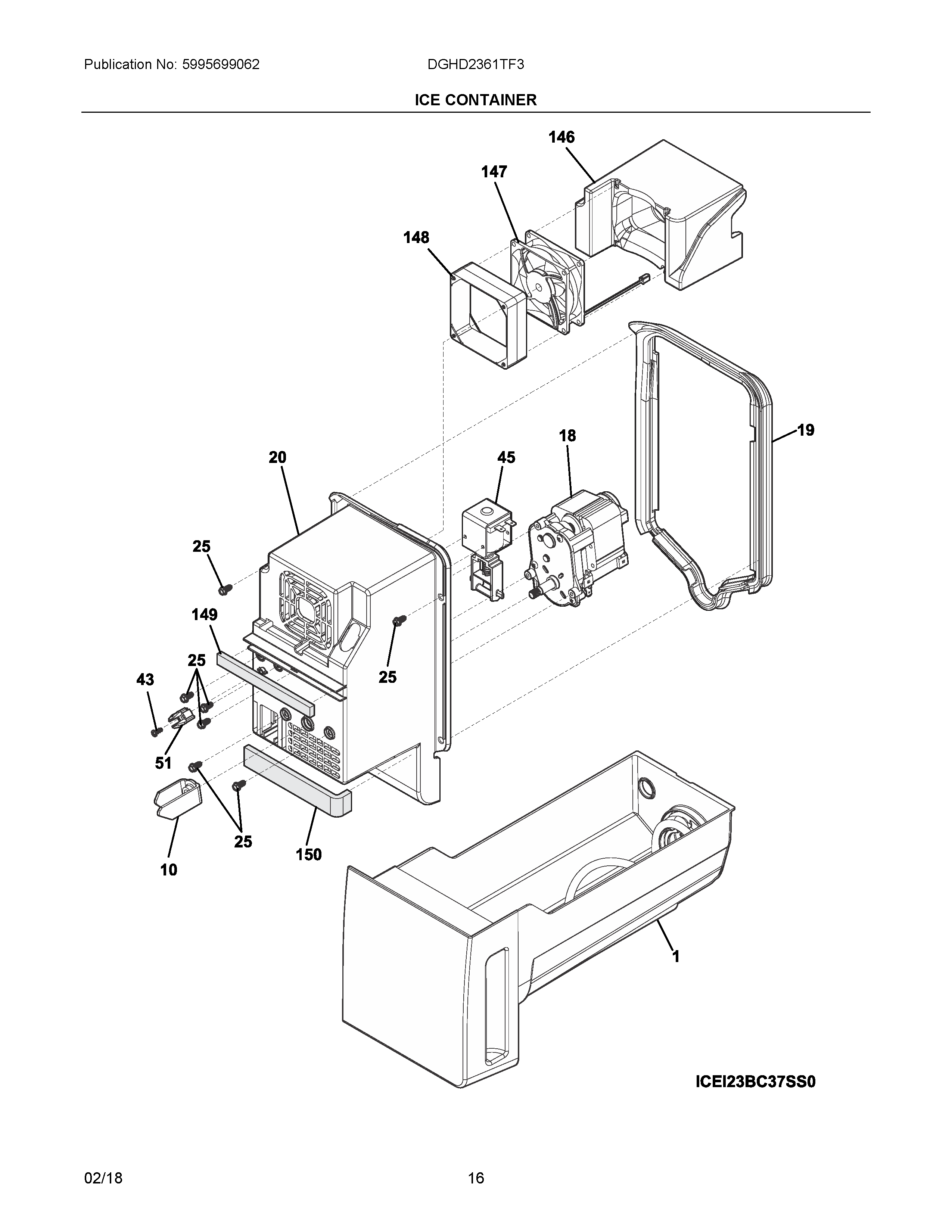

DGHD2361TF3 08 – ICE CONTAINER

DGHD2361TF3 08 – ICE CONTAINER

Written by

in

DGHD2361TF3 08 – ICE CONTAINER

Products

PositionProduct
1242100106 Frigidaire Refrigerator Ice Container Assembly
10241829001 Frigidaire Refrigerator Bar Drive
18241816602 Frigidaire Refrigerator Motor-AUGER
195304508066 Frigidaire Refrigerator Gasket
205304508036 Frigidaire Refrigerator Housing
25240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
43241641502 Frigidaire Refrigerator Screw
45241675704 Frigidaire Refrigerator Solenoid Assembly
51242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
1465304508072 Frigidaire Refrigerator Support
1475304493604 Frigidaire Refrigerator Gasket & Fan Kit
1485304508063 Frigidaire Refrigerator Grommet
149GASKET
150GASKET
