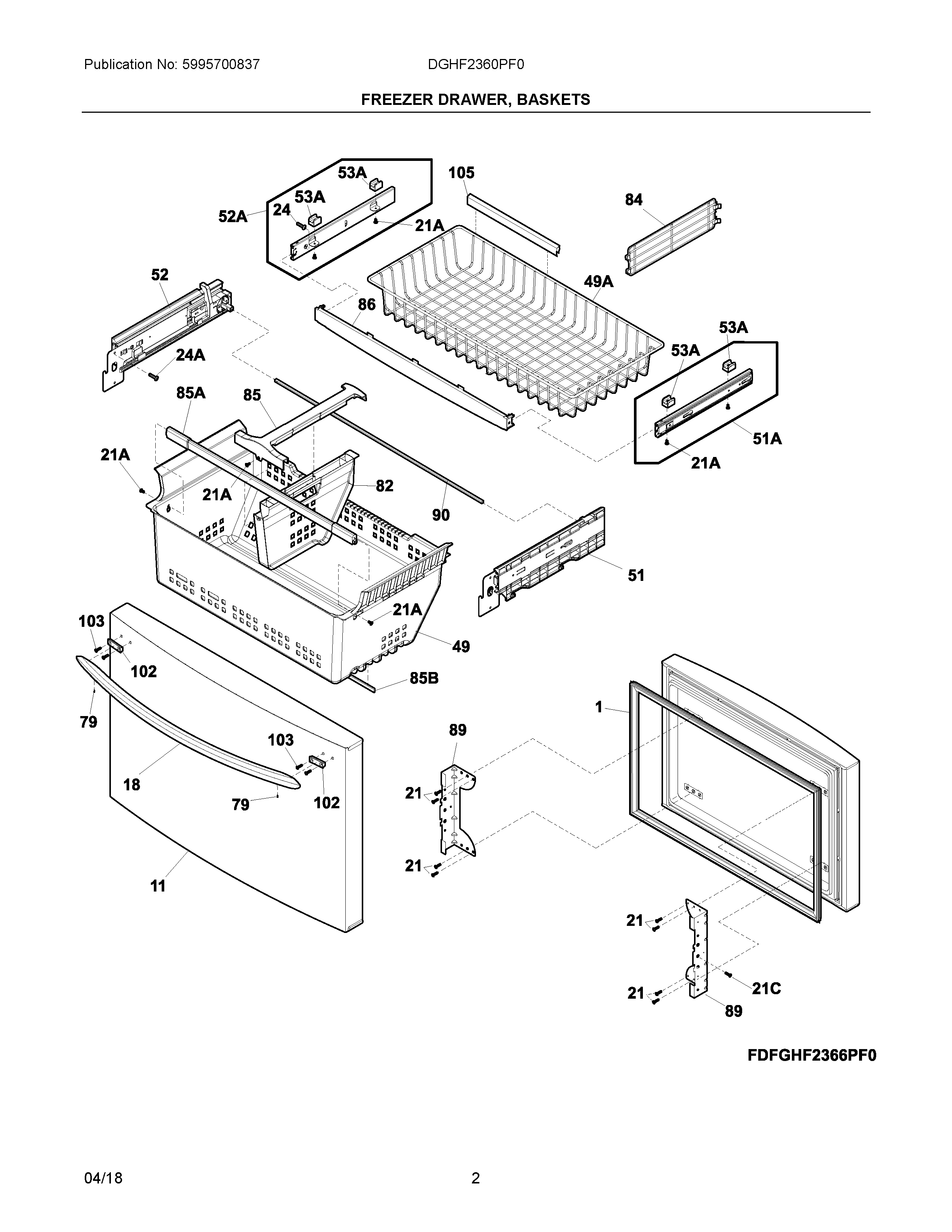

DGHF2360PF0 02 – FREEZER DRAWER, BASKETS

DGHF2360PF0 02 – FREEZER DRAWER, BASKETS

Written by

in

DGHF2360PF0 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242015001 Frigidaire Refrigerator Screw
NIAA242039701 Frigidaire Refrigerator Screw
NIA5304497384 Frigidaire Refrigerator Plate
NIA5304467131 Frigidaire Refrigerator Wrench
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI5304453707 Frigidaire Oven Screw
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11241987921 Frigidaire Refrigerator Freezer Door DSP
18242029401 Frigidaire Refrigerator Brushed Door Handle
21C241899703 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49A241780811 Frigidaire Refrigerator Basket-Frzr
495304526200 Frigidaire Refrigerator Basket
515303918694 Frigidaire Refrigerator Cd Rh Slide For Plastic Bask
51A241894221 Frigidaire Refrigerator Assembly-Slide
525303918693 Frigidaire Refrigerator Lh Basket Slide
52A241894222 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
82242131401 Frigidaire Divider
84241780905 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
85242139401 Frigidaire Refrigerator Divider
865304507340 Frigidaire Refrigerator Trim
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90242136901 Frigidaire Refrigerator Timing Bar
102242029301 Frigidaire Refrigerator Door Handle Mounting Block
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
