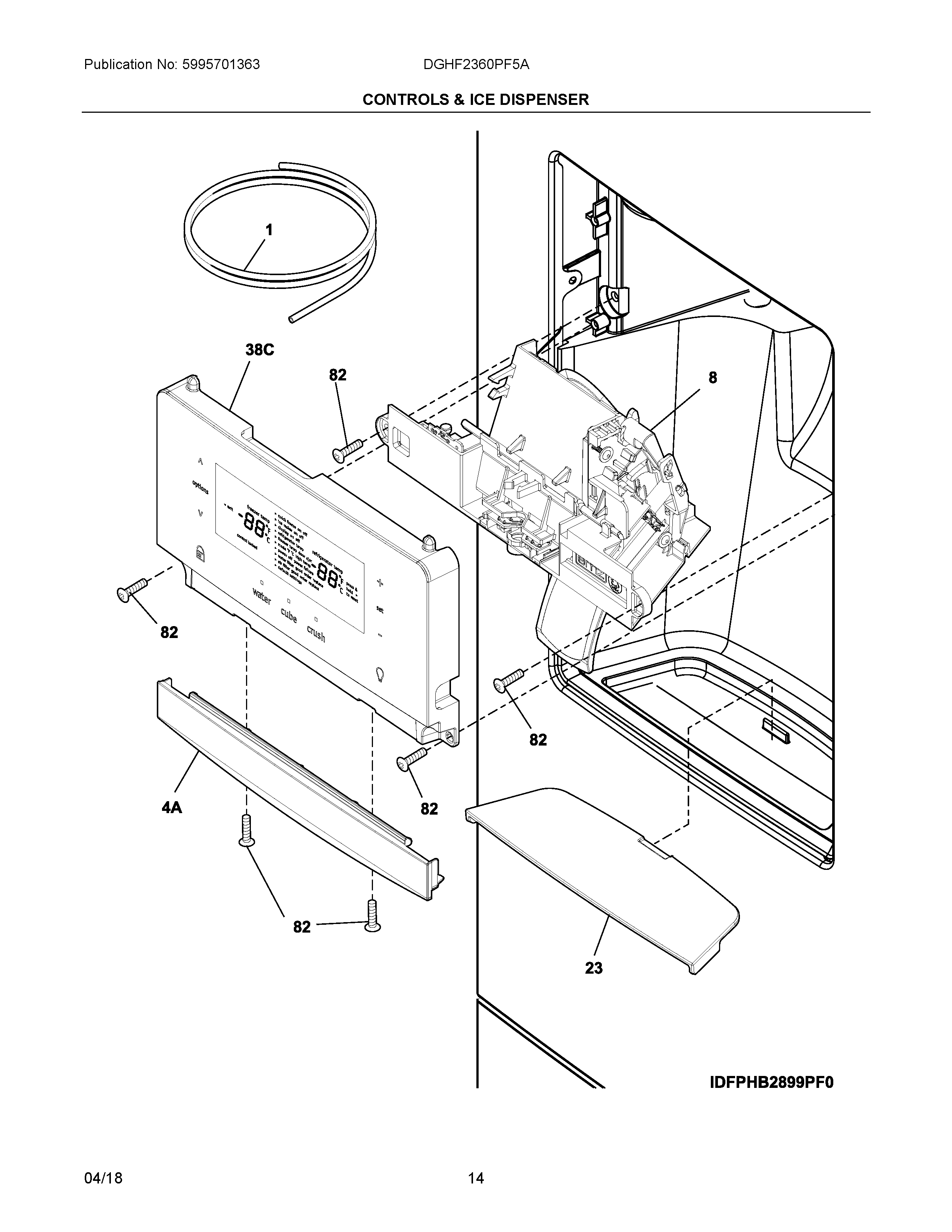

DGHF2360PF5A 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NICA241953902 Frigidaire Refrigerator Screw
NIC241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID5303918602 Frigidaire Refrigerator Water Tube Kit
NIB241964707 Frigidaire Refrigerator Water Tube
NIA241920106 Frigidaire Fill Tube Kit
NI5304521784 Frigidaire Refrigerator Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976435 Frigidaire Refrigerator Water Inlet Tube
4A242194301 Frigidaire Refrigerator Trim
8242270106 Frigidaire Refrigerator Module
23242176503 Frigidaire Refrigerator Sump
38CUSER INTERFACE, ASSEMBLY
