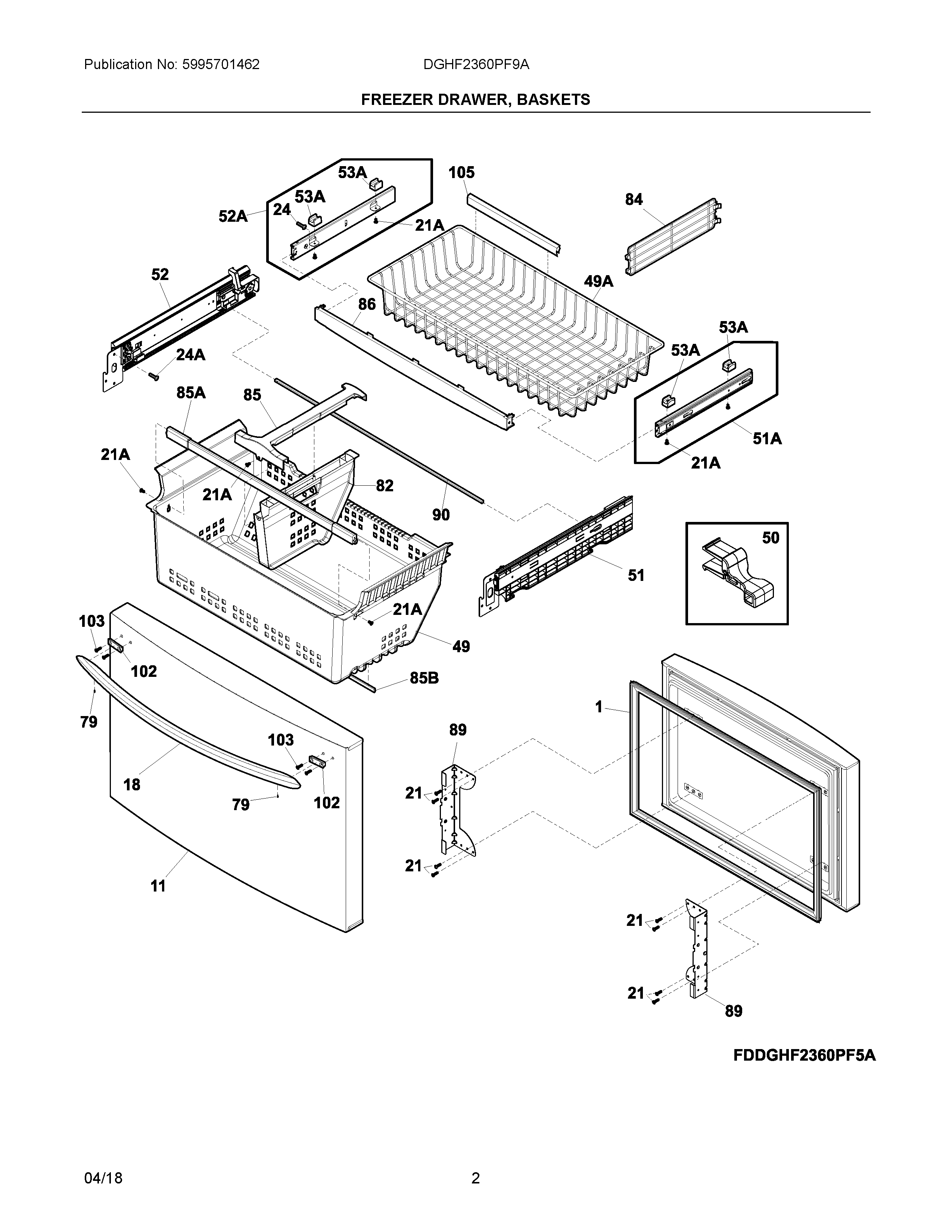

DGHF2360PF9A 02 – FREEZER DRAWER, BASKETS

DGHF2360PF9A 02 – FREEZER DRAWER, BASKETS

Written by

in

DGHF2360PF9A 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242015001 Frigidaire Refrigerator Screw
NI242146401 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NIB241953908 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA242039702 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA5304467131 Frigidaire Refrigerator Wrench
NIAA242039701 Frigidaire Refrigerator Screw
1GASKET
11241987921 Frigidaire Refrigerator Freezer Door DSP
18242029401 Frigidaire Refrigerator Brushed Door Handle
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49A241780811 Frigidaire Refrigerator Basket-Frzr
495304526200 Frigidaire Refrigerator Basket
505304501271 Frigidaire Shelf Clip
51A5304508094 Frigidaire Refrigerator Assembly Slide
515304499116 Frigidaire Refrigerator Slide Assembly
52A5304508095 Frigidaire Refrigerator Slide Assembly
525304520258 Frigidaire Refrigerator Assembly Slide Kit
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
825304507996 Frigidaire Refrigerator Divider
84241780905 Frigidaire Refrigerator Divider
85242139401 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85B241872203 Frigidaire Refrigerator Beam Support
865304507340 Frigidaire Refrigerator Trim
895304509676 Frigidaire Refrigerator Bracket
90A242136901 Frigidaire Refrigerator Timing Bar
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
