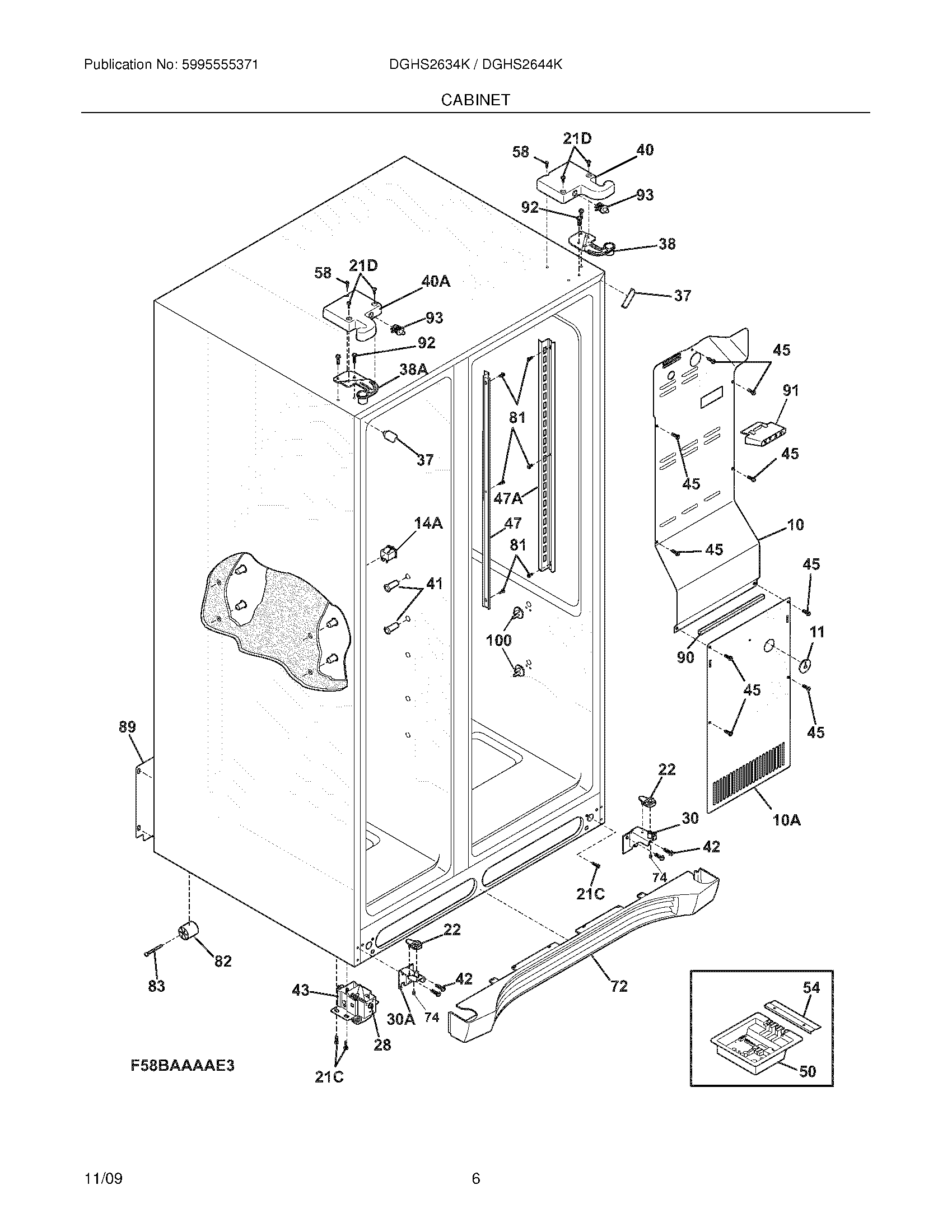

DGHS2644KF2 07 – CABINET

DGHS2644KF2 07 – CABINET

Written by

in

DGHS2644KF2 07 – CABINET

Products

PositionProduct
NI241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIWCI 241867901
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI241852501 Frigidaire Refrigerator Clip
NI241835801 Frigidaire Refrigerator Wiring Harness
10240435912 Frigidaire Refrigerator Cover-Air Duct
10A241719711 Frigidaire Refrigerator Evaporator Coil Cover
115303208309 Frigidaire Refrigerator Plug Hole
14A241547902 Frigidaire Refrigerator Light Switch
21C218252201 Frigidaire Refrigerator Screw
21D241548003 Frigidaire Refrigerator Screw
22241917801 Frigidaire Refrigerator Closer Plate
30241918001 Frigidaire Lower Door Hinge
30A241918002 Frigidaire Refrigerator Lower Hinge
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40A241946706 Frigidaire Refrigerator Upper Hinge Cover
40A241891901 Frigidaire Refrigerator Wiring Harness
40241946705 Frigidaire Refrigerator Upper Hinge Cover
41241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
47AWCI 242001901
47WCI 242001902
505303918498 Frigidaire Refrigerator Main Power Control Board
54241532401 Frigidaire Refrigerator Channel
58218781101 Frigidaire Handle Screw
72241969405 Frigidaire Grille/Kickplate
74218755402 Frigidaire Refrigerator Set Screw
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
93241911704 Frigidaire Refrigerator Switch
100241993001 Frigidaire Refrigerator Left Crisper Cover Support
100CRISPER COVER SUPPORT
