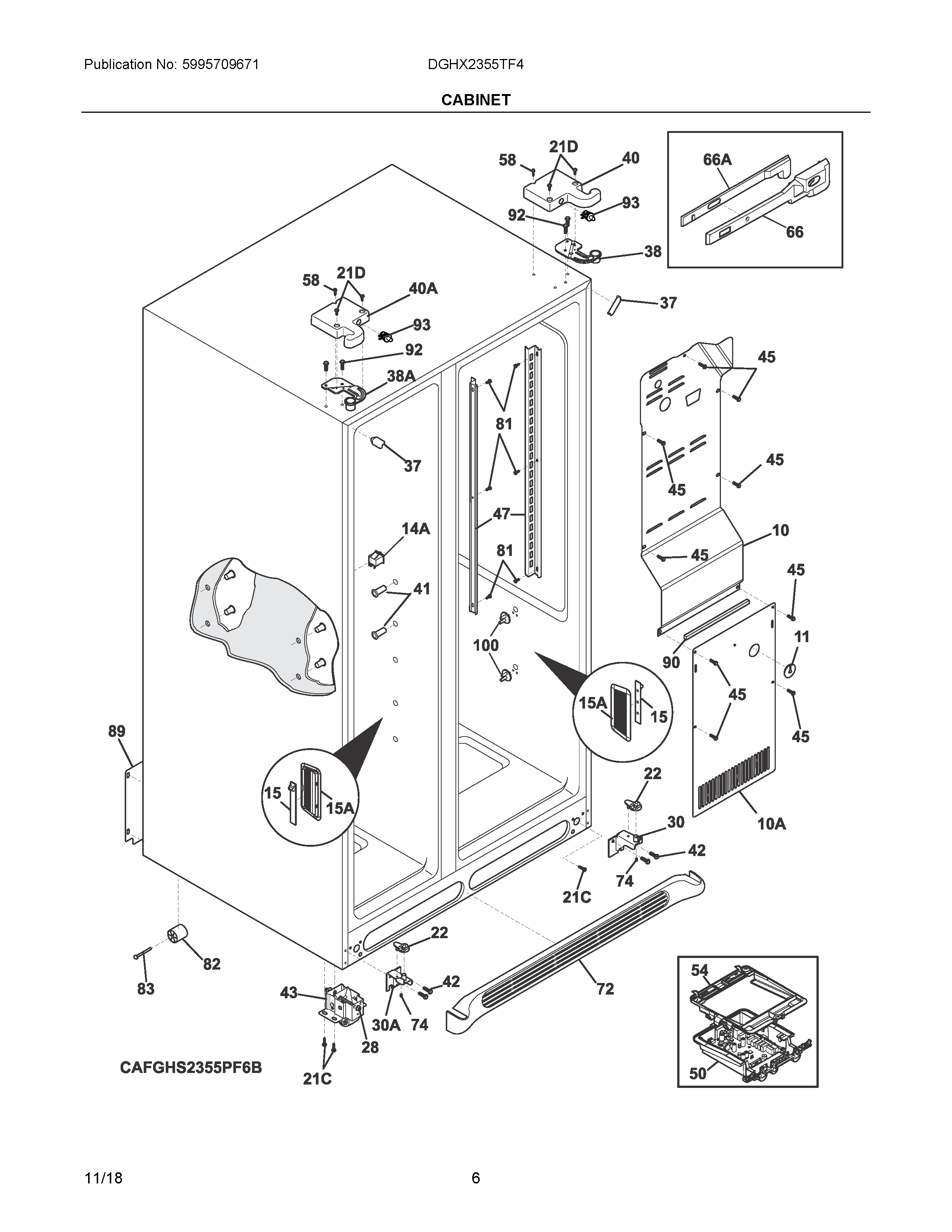

DGHX2355TF4 04 – CABINET

DGHX2355TF4 04 – CABINET

Written by

in

DGHX2355TF4 04 – CABINET

Products

Position	Product
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	808835601 Frigidaire Refrigerator Harness
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241868101 Frigidaire Air Guide
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NIA	241512807 Frigidaire Refrigerator Seal
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10	WCI 240435913
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15A	242202701 Frigidaire Refrigerator Lens
15	5304525264 Frigidaire LED Light
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918004 Frigidaire Lower Hinge Bracket
30	241918001 Frigidaire Lower Door Hinge
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	241946710 Frigidaire Refrigerator Upper Hinge Cover
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513003 Frigidaire Refrigerator Shelf Mounting Channel
50	5304507449 Frigidaire Refrigerator Main Power Board
54	807854301 Frigidaire Refrigerator Support
58	241548003 Frigidaire Refrigerator Screw
66A	241756901 Frigidaire Refrigerator Housing-Damper
66	241756801 Frigidaire Refrigerator Damper-Meat Keeper
72	241972905 Frigidaire Refrigerator Kickplate Grille Assembly
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 241733901
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911705 Frigidaire Refrigerator Light Switch
100	CRISPER COVER SUPPORT
