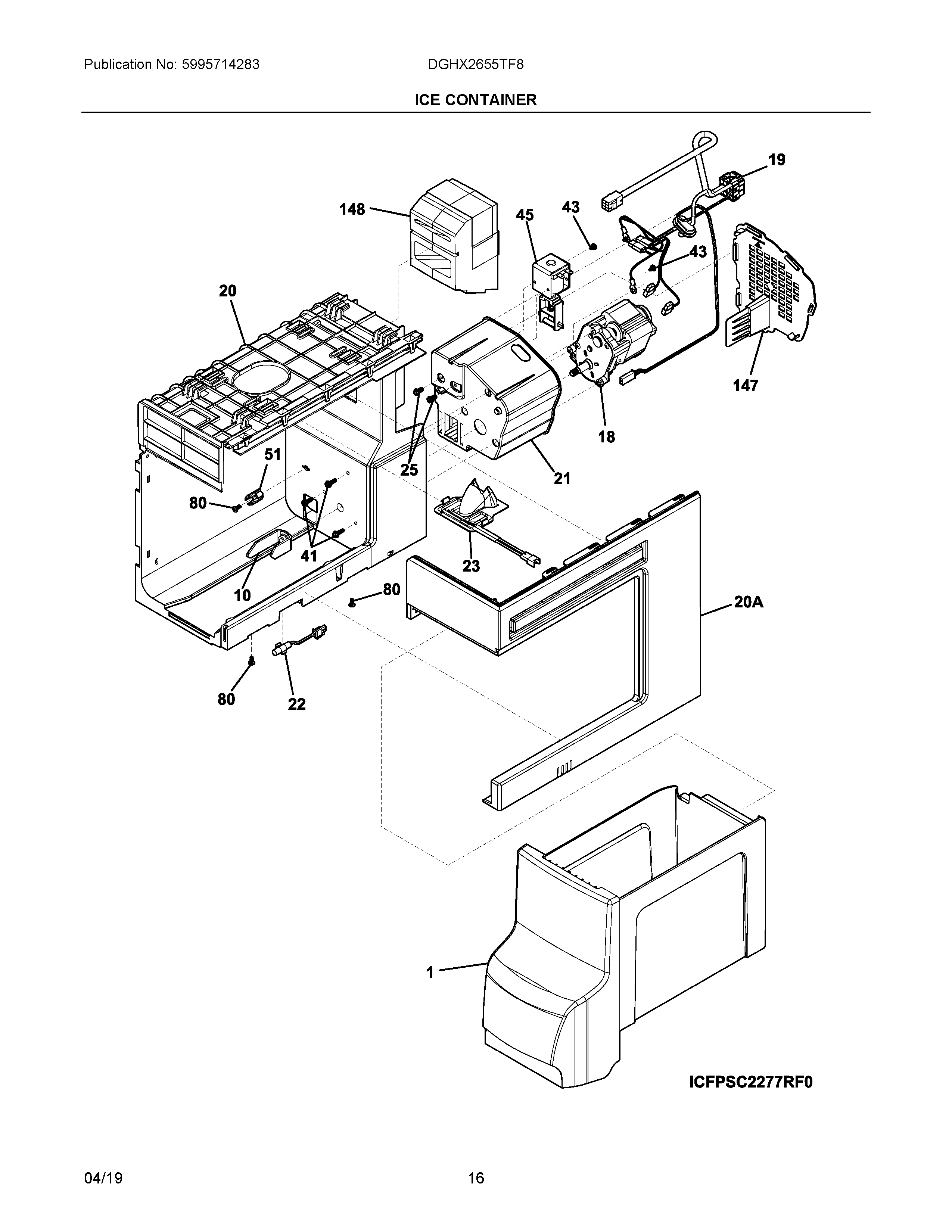

DGHX2655TF8 09 – ICE CONTAINER

Products

Position	Product
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIA	241519401 Frigidaire Refrigerator Clip
1	5304522718 Frigidaire Ice Container Assembly
10	241829001 Frigidaire Refrigerator Bar Drive
18	241816602 Frigidaire Refrigerator Motor-AUGER
19	5304521770 Frigidaire Refrigerator Harness
20	242303501 Frigidaire Refrigerator Housing
20A	242303601 Frigidaire Refrigerator Housing
21	242305203 Frigidaire Refrigerator Motor-Cover Housing
22	240597220 Frigidaire Sensor
23	5304504455 Frigidaire Refrigerator Fill Cup
25	241953902 Frigidaire Refrigerator Screw
41	240555005 Frigidaire Refrigerator Screw
43	218359202 Frigidaire Refrigerator Screw
45	241675704 Frigidaire Refrigerator Solenoid Assembly
51	242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
80	241953908 Frigidaire Refrigerator Screw
147	5304504451 Frigidaire Refrigerator Motor
148	5304504447 Frigidaire Refrigerator Duct Air
