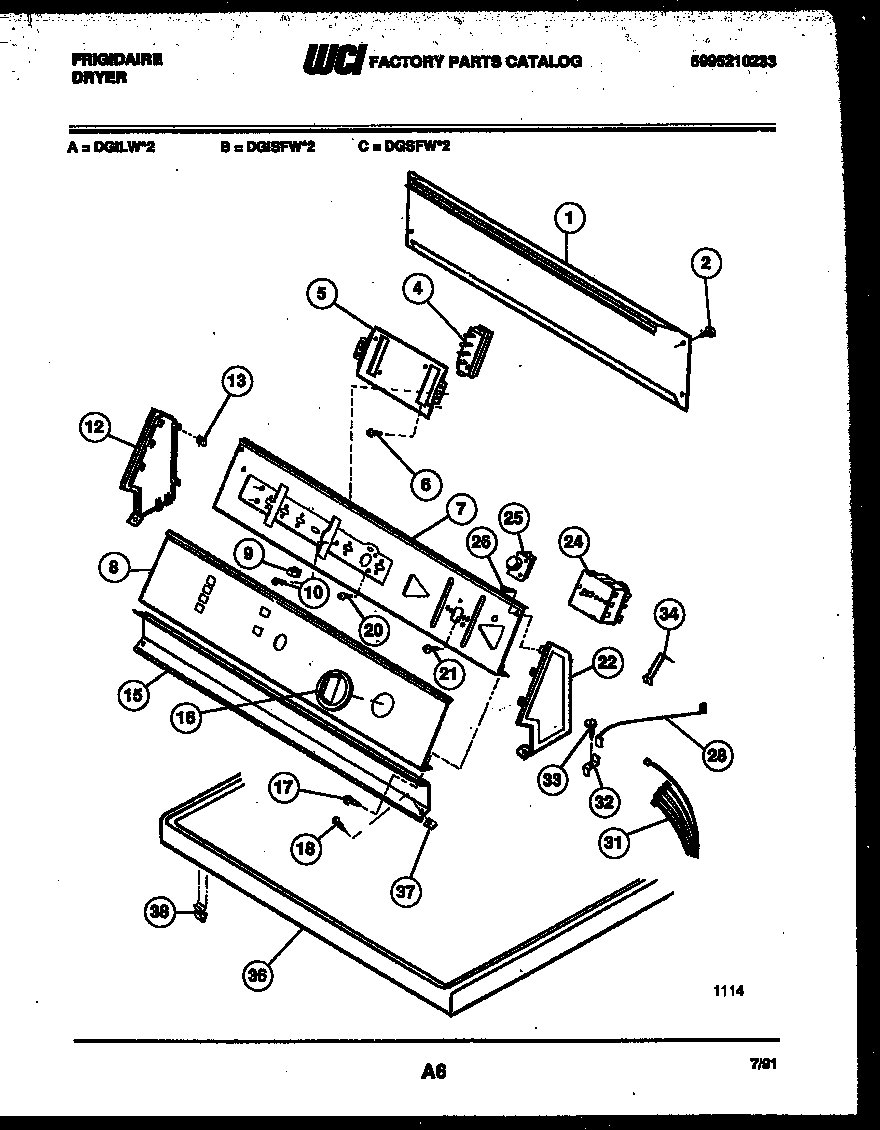

DGILW2 04 – CONSOLE AND CONTROL PARTS

DGILW2 04 – CONSOLE AND CONTROL PARTS

Written by

in

DGILW2 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*41546WCI 3161259
*41546WCI 08014340
*41546WCI 3201615
1WCI 3201322
25303015671 Frigidaire Bracket Termination Screw
7WCI 3201326
8WCI 3206243
12END CAP RH
13WCI 08014350
15WCI 3205875
16TIMER KNOB AND INDICATOR ASSEMBLY
17WCI 08010782
18WCI 3205820
20WCI 08001544
21SCREW (2)
22WCI 3205876
24WCI 3201337
25WCI 5303212833
26SCREW (2)
28WCI 3201385
31A5303303590 Frigidaire Dryer 4.0" Cable Tie
31WCI 5303270855
32WCI 5379171000
33131243800 Frigidaire Screw
34WCI 08014349
36PANEL-TOP-WHITE
36PANEL TOP-ALMOND
37WCI 3281192
383205821 Frigidaire Clip
