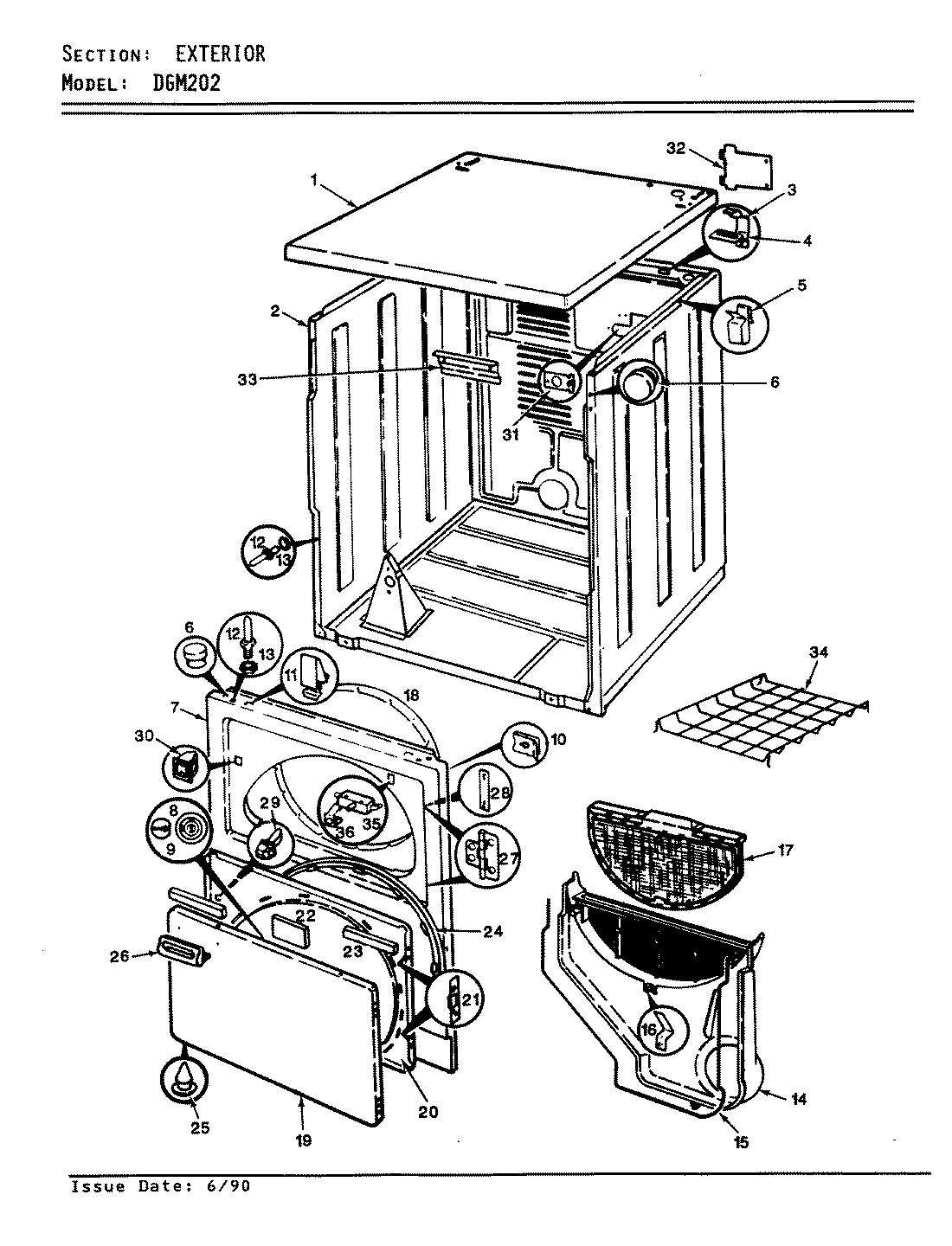

DGM202W 06 – EXTERIOR (REV. A-D)

Products

Position	Product
1	MAY 53-0314
1	MAY 53-1711
2	MAY 53-1644
2	MAY 53-0160
3	MAY 63-5712
4	WP90767 Whirlpool Screw
4	MAY 33-0930
5	MAY 25-3034
6	MAY 33-2653
7	MAY 53-0727
8	MAY 53-0155
9	MAY 53-0156
10	WP489478 Whirlpool Refrigerator Screw
10	MAY 25-7817
11	WP25-7220 Whirlpool Cabinet Clip
12	MAY 63-6148
13	MAY 25-0224
13	MAY 53-0200
14	MAY 53-1299
15	MAY 53-1298
16	MAY 53-0123
17	WP53-0918 Whirlpool Lint Filter
18	MAY 53-0282
19	MAY 53-0154
20	MAY 53-0740
21	MAY 53-0119
22	MAY 53-0251
23	MAY 53-0252
24	MAY 53-0112
24	MAY 25-7770
25	MAY 25-3534
26	MAY 25-7810
26	MAY 53-0928
27	W10756178 Whirlpool Screw
27	MAY 53-0122
28	MAY 53-0121
29	MAY 73-0033
30	LA-1003 Whirlpool Dryer Door Catch and Metal Strike
31	MAY 53-0135
31	WP489483 Whirlpool Screw
32	MAY 25-7857
32	MAY 53-0284
33	MAY 53-0133
33	MAY 25-3457
34	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
35	MAY 53-0147
36	MAY 63-5990
