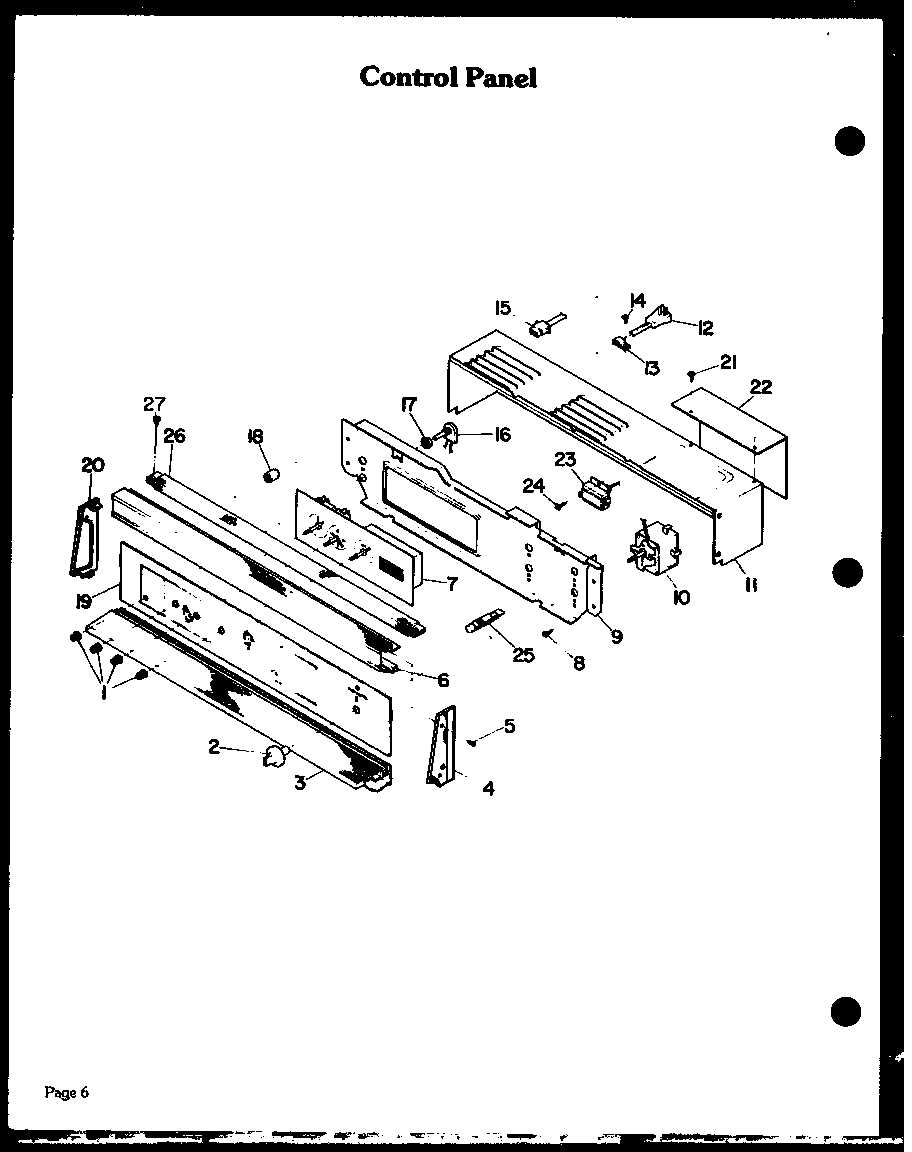

DGO-851 03 – CONTROL PANEL SECTION
Written by
in
DGO-851 03 – CONTROL PANEL SECTION
Products
Position
Product
NI
MAY 43507
NI
MAY 40899
NI
MAY Y0043688
1
MAY Y0042633
1
MAY 0047209
2
MAY 0042654
3
MAY Y0042166
3
MAY 0042592
4
MAY 0042362
4
MAY 42589
5
MAY 0041839
6
MAY 50015
6
MAY Y0042591
7
MAY 0041791
7
MAY Y0042424
9
MAY 0040890
9
MAY 42387
10
MAY 0042297
10
MAY Y0041785
10
MAY Y0042390
11
MAY Y0040668
11
MAY 0041201
12
MAY Y0042027
12
MAY 42397
13
MAY 42307
13
MAY 0041901
14
MAY Y0041792
14
MAY Y0045840
15
MAY 42417
16
MAY Y0041202
16
MAY 0042034
17
MAY 0042314
18
MAY 0042303
18
MAY Y0042012
19
MAY Y0042308
19
MAY 0042806
20
MAY 0042588
20
MAY 41205
22
SEE NOTE GROUND WIRE, GREEN
22
MAY Y0042404
23
MAY 0042071
24
MAY Y41808
25
MAY Y0042183
26
MAY Y0040392
27
MAY Y0041794
←
