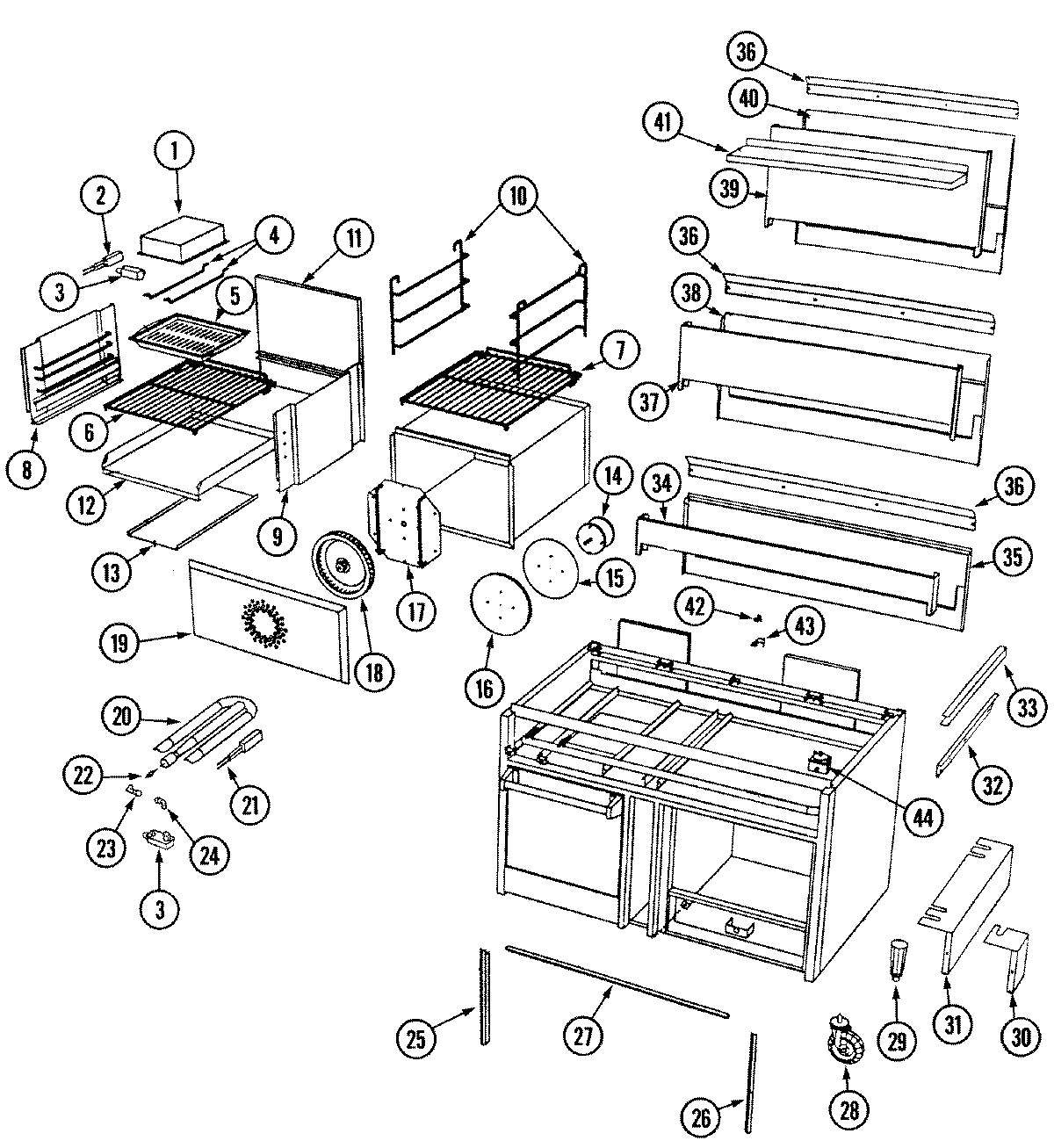

DGRC2485GWOK 03 – OVEN BODY/GAS CONTROLS
Written by
in
DGRC2485GWOK 03 – OVEN BODY/GAS CONTROLS
Products
Position
Product
0
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1
MAY 70001088
1
MAY 70001011
3
MAY 70001531
4
MAY 70001089
5
MAY 70001090
6
MAY 70001495
7
MAY 70001496
8
MAY 70001511
9
MAY 70001512
10
MAY 70001505
13
MAY 70001510
14
MAY 70001504
15
MAY 70001503
16
MAY 70001502
17
MAY 70001501
18
MAY 70001500
18
MAY 70001028
19
MAY 70001499
20
MAY 70001003
21
MAY 70001036
22
MAY 70001529
22
MAY 70001152
22
MAY 70001153
22
MAY 70001071
23
MAY 70001086
24
MAY 70001275
25
MAY 70001560
26
MAY 70001561
27
MAY 70001604
27
MAY 70001603
28
MAY 70001563
28
MAY 70001378
29
MAY 70001377
30
MAY 70001565
30
MAY 70001564
31
MAY 70001670
32
MAY 70001674
32
MAY 70001673
33
MAY 70001671
34
MAY 70001606
35
MAY 70001607
36
MAY 70001609
37
MAY 70001611
38
MAY 70001613
39
MAY 70001615
40
MAY 70001617
41
MAY 70001194
44
MAY 70001038
←
