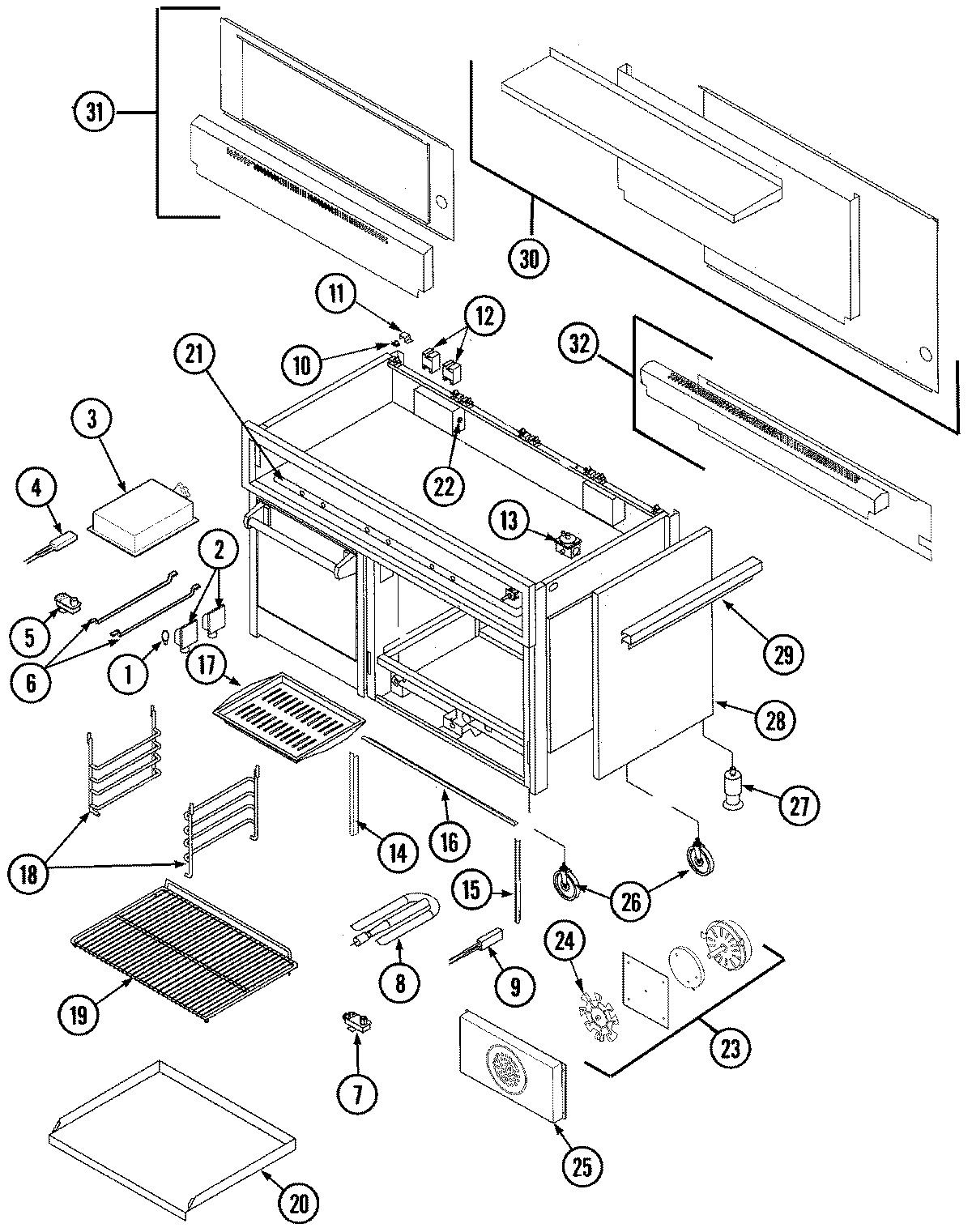

DGRSC486G 03 – OVEN BODY/GAS CONTROLS
Written by
in
DGRSC486G 03 – OVEN BODY/GAS CONTROLS
Products
Position
Product
0
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1
MAY 70001024
2
MAY 70001019
2
MAY 70001906
3
MAY 70001088
3
MAY 70001903
3
MAY 70001011
5
MAY 70001031
6
MAY 70001089
7
MAY 70001071
7
MAY 70001785
7
MAY 70001274
7
MAY 70001152
7
MAY 70001103
7
MAY 70001485
8
MAY 70001832
8
MAY 70001931
9
MAY 70001036
9
MAY 12002577
10
MAY 70001229
11
MAY 70001230
12
MAY 12002554
12
MAY 70001044
13
MAY 70001041
13
MAY 70001753
14
MAY 70001198
15
MAY 70001199
16
MAY 70001200
16
MAY 70001201
17
MAY 70001090
18
MAY 70001097
19
MAY 70001092
19
MAY 70001091
20
MAY 70001095
20
MAY 70001094
21
MAY 70001870
22
MAY 70001232
22
MAY 70001231
23
MAY 70001932
24
MAY 70001028
25
MAY 70001045
26
MAY 70001289
26
MAY 70001290
27
MAY 70001237
28
MAY 70001242
28
MAY 70001894
28
MAY 70001241
28
MAY 70001240
29
MAY 70001235
30
MAY 70003039
30
MAY 70003038
30
MAY 70003037
31
MAY 70003041
31
MAY 70003042
31
MAY 70003040
32
MAY 70003043
33
MAY 70001886
33
MAY 70001884
←
