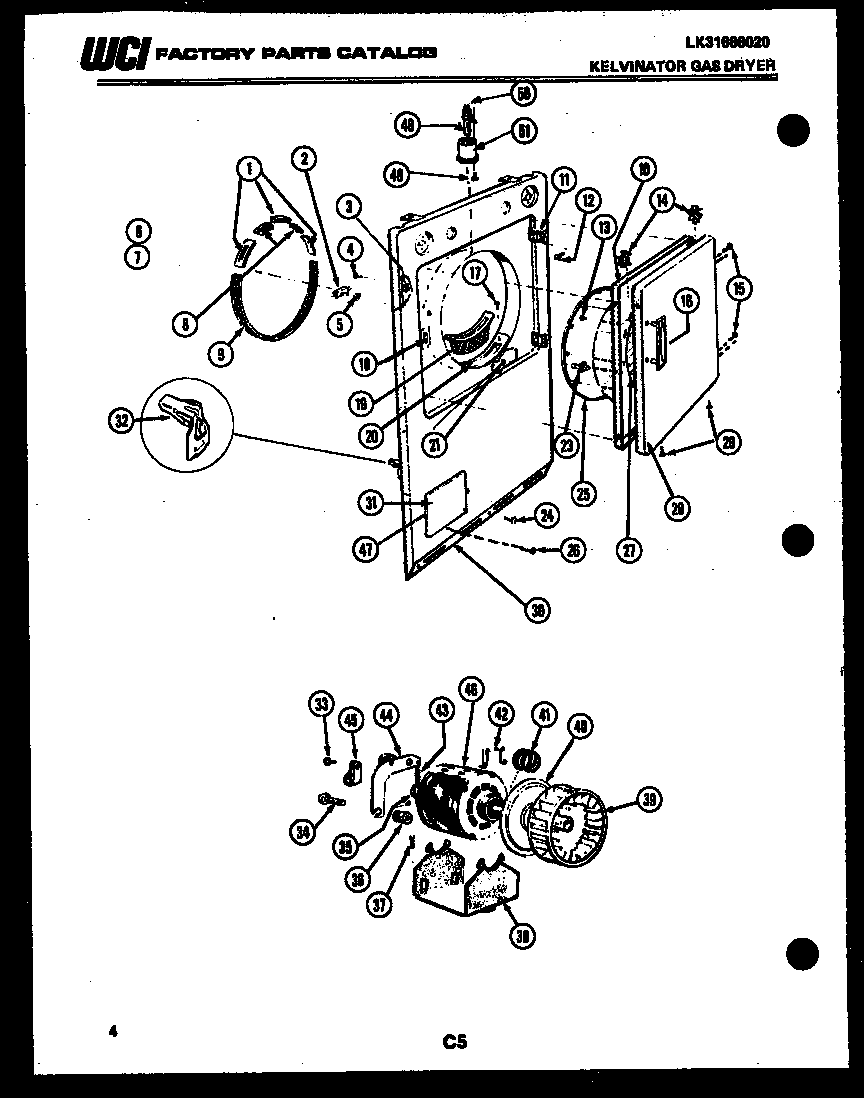

DGS100CD1 03 – CABINET FRONT, MOTOR AND BLOWER

Products

Position	Product
1	WCI WQ142887
2	WCI WQ622421
3	WCI WQ500255
5	WCI WQ409004
6	5308027429 Frigidaire Dryer High Temperature Adhesive
7	WCI WQ15141
8	WCI WQ616043
9	SEAL-LOWER
10	ID PNL-ALMOND
11	WCI WQ607301
12	WCI WQ505564
13	WCI WQ503952
14	WCI WQ631591
16	WCI WQ622791
17	WCI WQ403103
18	131658800 Frigidaire Dryer Door Catch Repair Kit
19	WCI WQ632621
20	FRAME-LINT TRAP
21	WCI WQ500265
23	WCI WQ504552
24	WCI WQ500717
25	WCI WQ167703
26	5303300265 Frigidaire Oven Screw
27	SHIELD, HEAT
28	PNL-OD. ALMOND
29	WCI WQ504773
30	PNL-FRNT-ALMD
31	DR ACC-ALMOND
32	CLIP (4)
33	WCI WQ414002
34	WCI WQ433401
35	WCI WQ621502
36	WCI WQ600179
37	WCI WQ500732
39	WCI WQ615901
40	WCI WQ94948
41	WCI WQ94715
42	WCI WQ62206
43	5303281085 Frigidaire Spring Idler
44	IDLER PULLEY & BRKT
45	CLAMP
46	MAIN MOTOR
47	PIN – SUPPORT
48	SCREW-BOT PAN (4)
49	WCI WQ7429
50	WCI WQ128481
51	WCI WQ182671
